Micro Torque Hinge

K235

Micro Torque Hinge

Plastic Injection

application：Instrument case,Distribution cabinet, Door & windows

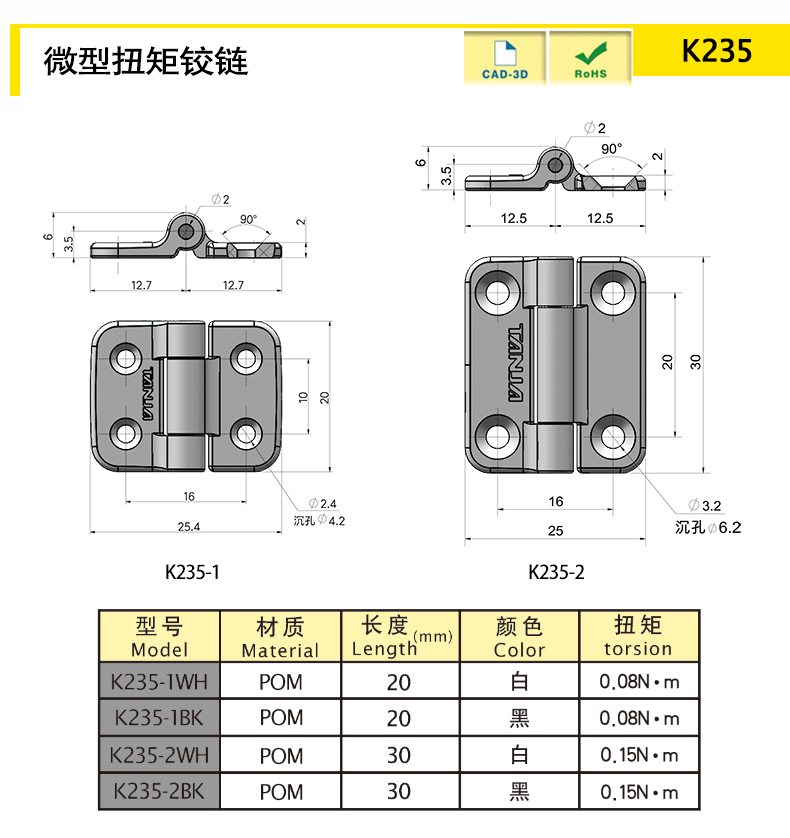

Product size diagram

Product size and properties

Model Number	Material	Length（mm）	Color	Weight (g)	Function
K235-1WH	POM	20	Silver	/	Fixed torque
K235-1BK	POM	20	Black	/	Fixed torque
K235-2WH	POM	30	Silver	/	Fixed torque
K235-2BK	POM	30	Black	/	Fixed torque

characteristic

Any stop, can be positioned at any angle within the opening and closing range, with a maximum opening and closing angle of 270 °.

Available services

Installation : Exposed Mount

Product Name
Micro Torque Hinge

More information

If you have more technical advice，Please call
0535-6217008-801
