Torque Hinge

K246

Torque Hinge

application：Small lightweight doors for office equipment, commodity shelves, etc

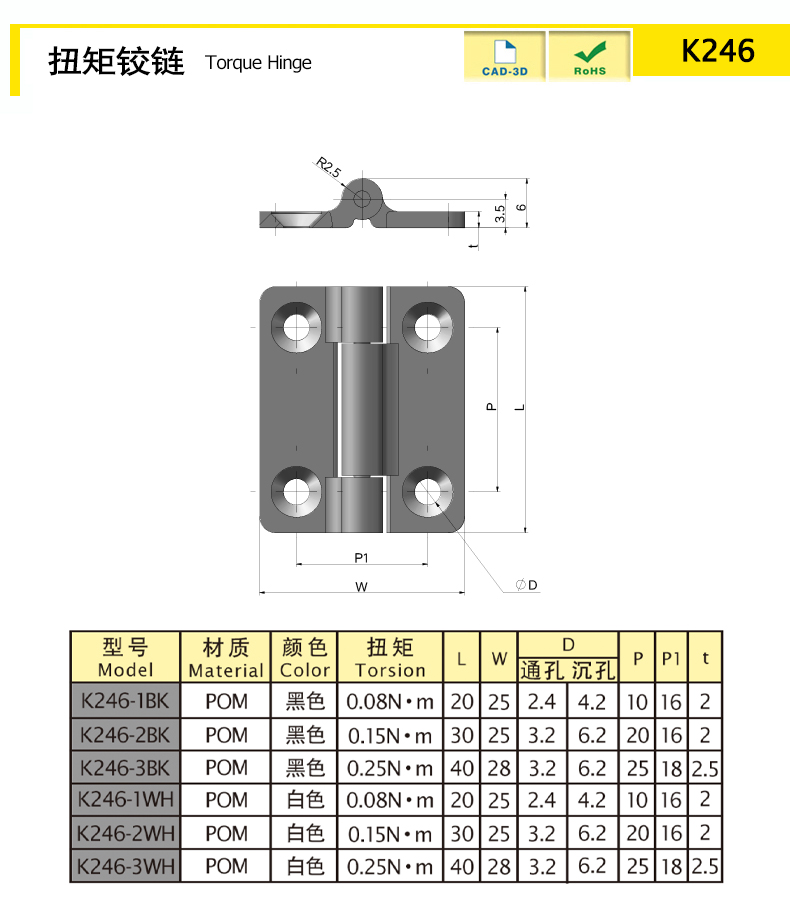

Product size diagram

Product size and properties

Model Number	Material	Length（mm）	Color	Weight (g)	Function
K246-1BK	POM	20	Black	/	Fixed torque
K246-2BK	POM	30	Black	/	Fixed torque
K246-3BK	POM	40	Black	/	Fixed torque
K246-1WH	POM	20	White	/	Fixed torque
K246-2WH	POM	30	White	/	Fixed torque
K246-3WH	POM	40	White	/	Fixed torque

characteristic

Lightweight, high-strength, mute, light torque

Any stop, positioning can be stopped at any angle within the opening and closing range

Available services

Product Name
Torque Hinge

More information

If you have more technical advice，Please call
0535-6217008-801
