Case Hinge

K07

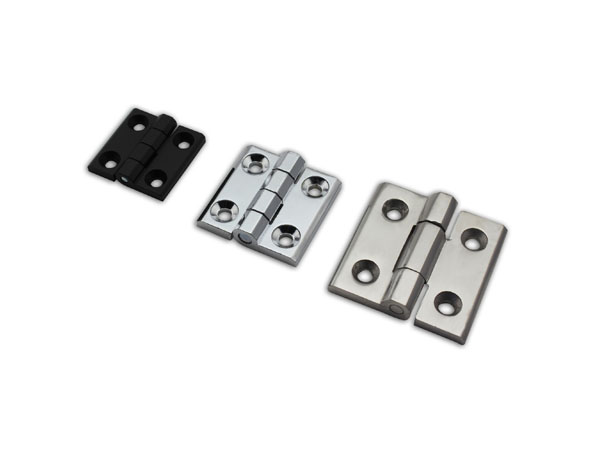

Case Hinge

Zinc Alloy Die Casting

application：Distribution and generator and machine tools

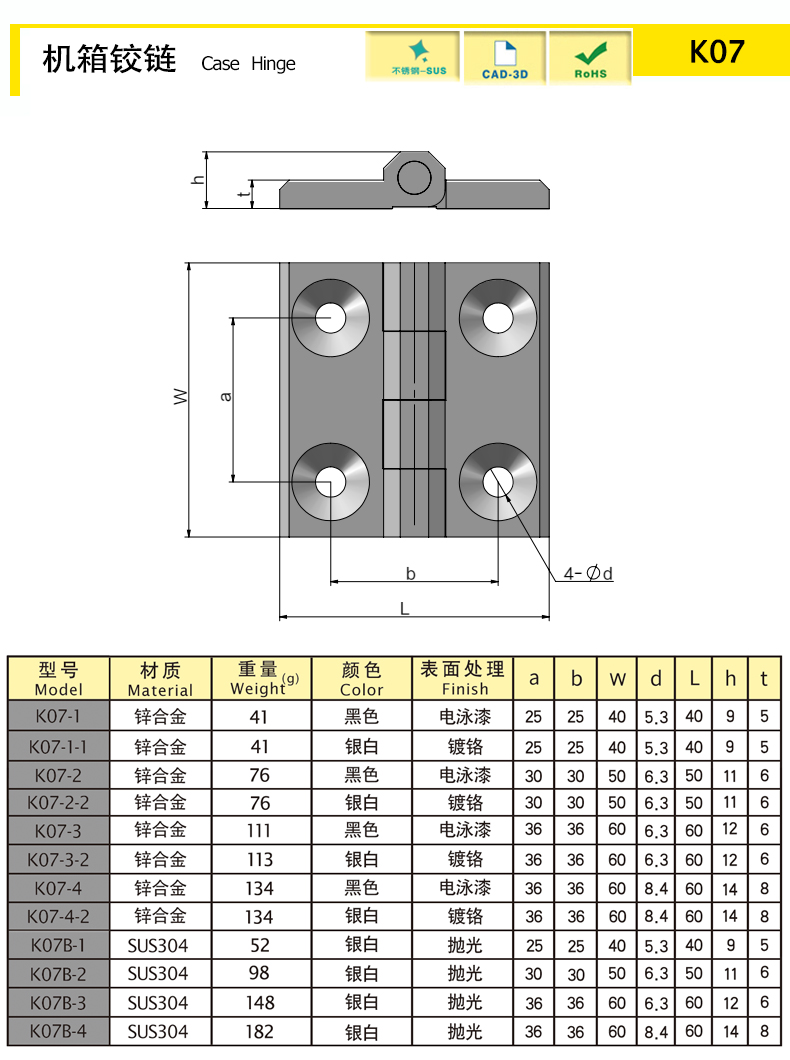

Product size diagram

Product size and properties

Model Number	Material	Length（mm）	Color	Weight (g)	Function
K07-1	Zinc Alloy	40	Black	41	Light load
K07-1-1	Zinc Alloy	40	Silver	41	Light load
K07-2	Zinc Alloy	50	Black	76	Light load
K07-2-2	Zinc Alloy	50	Silver	76	Light load
K07-3	Zinc Alloy	60	Black	111	Light load
K07-3-2	Zinc Alloy	60	Silver	113	Light load
K07-4	Zinc Alloy	60	Black	134	Light load
K07-4-2	Zinc Alloy	60	Silver	134	Light load
K07B-1	SUS304	40	Silver	52	Light load
K07B-2	SUS304	50	Silver	98	Light load
K07B-3	SUS304	60	Silver	148	Light load
K07B-4	SUS304	60	Silver	182	Light load

characteristic

Stainless steel (Polish) / Zinc alloy (black or silver color) are optional, anti-corrosive,angle of rotation is above 180°

Available services

Installation : Exposed Mount

Product Name
Case Hinge

More information

If you have more technical advice，Please call
0535-6217008-801
