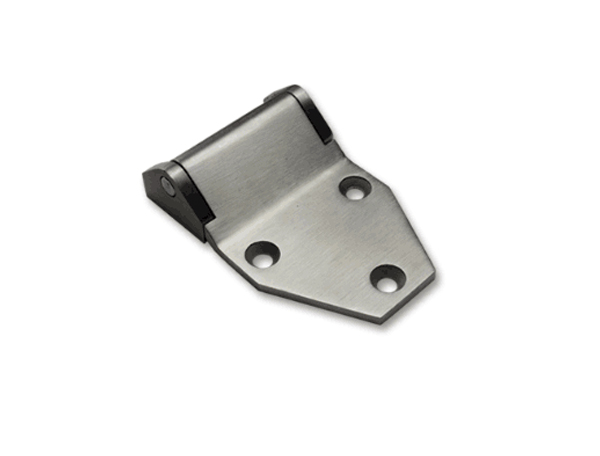

Heavy Duty Hinge

K09B

Heavy Duty Hinge

Stainless Steel Sheet Stamping

application:Heavy duty machine,Specially equipped vehicles

catalogue CAD data

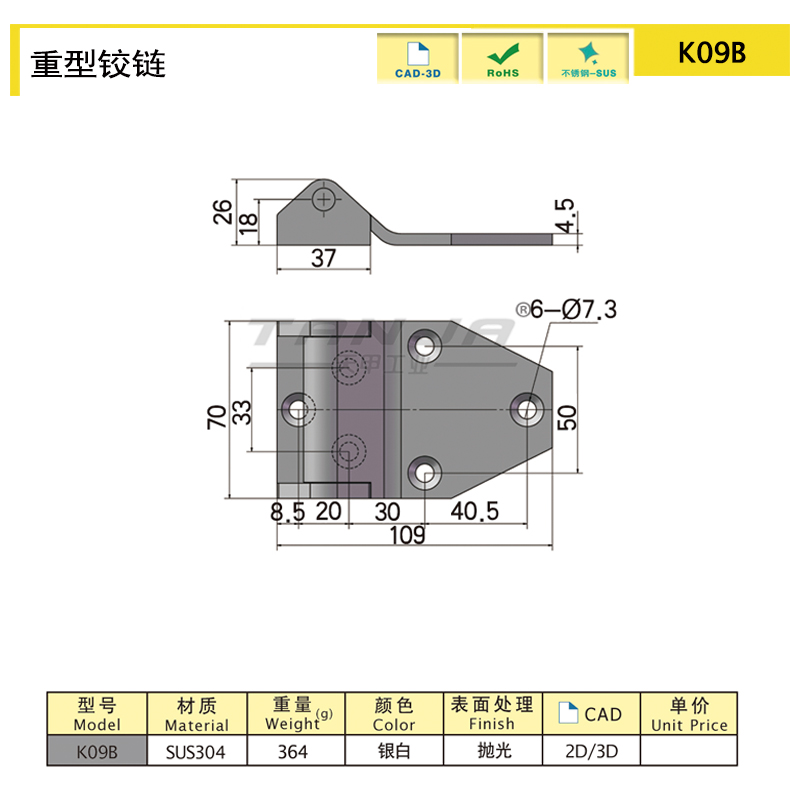

Product size diagram
Product size and properties
Model Number Material bottomLength(mm) bottomColor Weight (g) bottomFunction 3D DRAWINGS
K09B SUS304 109.5 Silver 364 Overload
characteristic

Mirror / brushed is optional, rotation is above 180°

Available services

Installation : Exposed Mount
