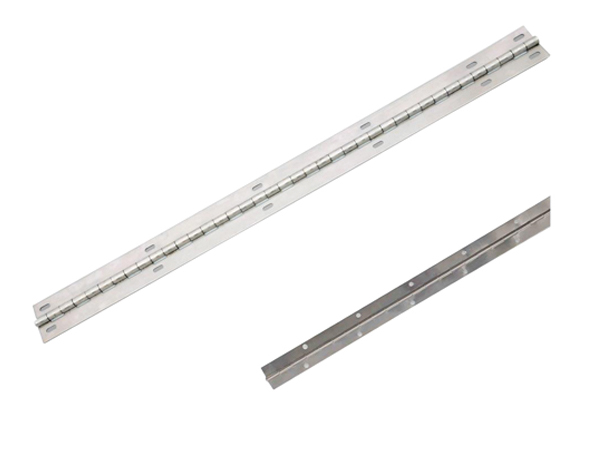

Piano Hinge

K33

Piano Hinge

Sheet stamping

application：Communication devices, Ships,Special equipped vehicles

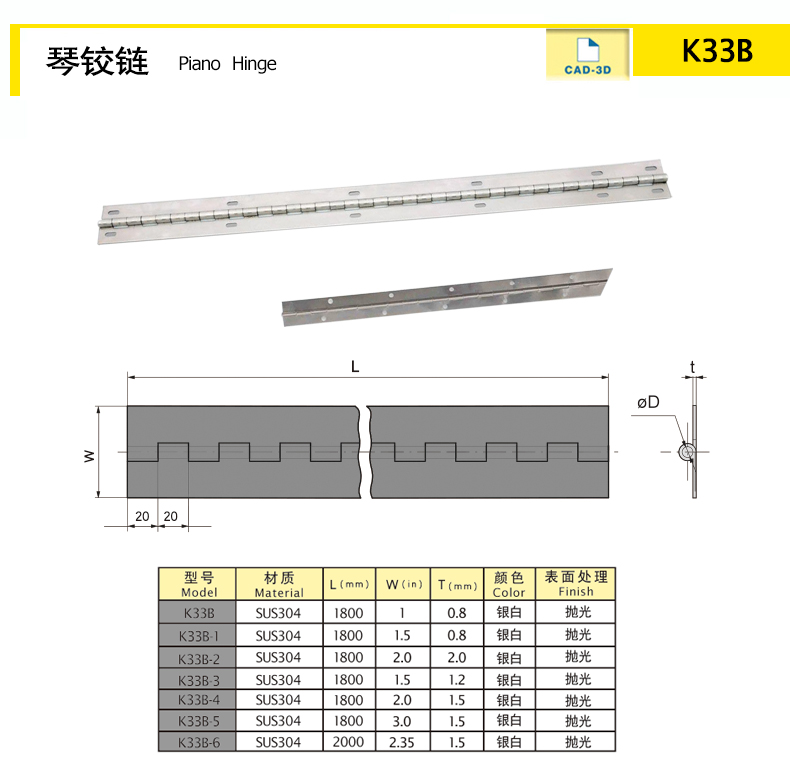

Product size diagram

Product size and properties

Model Number	Material	Length（mm）	Color	Weight (g)	Function
K33B	SUS304	1800	Silver	300	Light load
K33B-1	SUS304	1800	Silver	/	Light load
K33B-2	SUS304	1800	Silver	/	Light load
K33B-3	SUS304	1800	Silver	/	Light load
K33B-4	SUS304	1800	Silver	/	Light load
K33B-5	SUS304	1800	Silver	/	Light load
K33B-6	SUS304	2000	Silver	/	Light load

characteristic

Different material is optional, can be installed after cut

Available services

Installation:Exposed Mount
