Magnetic Rebounder

MC06

Magnetic Rebounder

application：Cabinet Doors, Windproof Doors, Mechanical Equipment

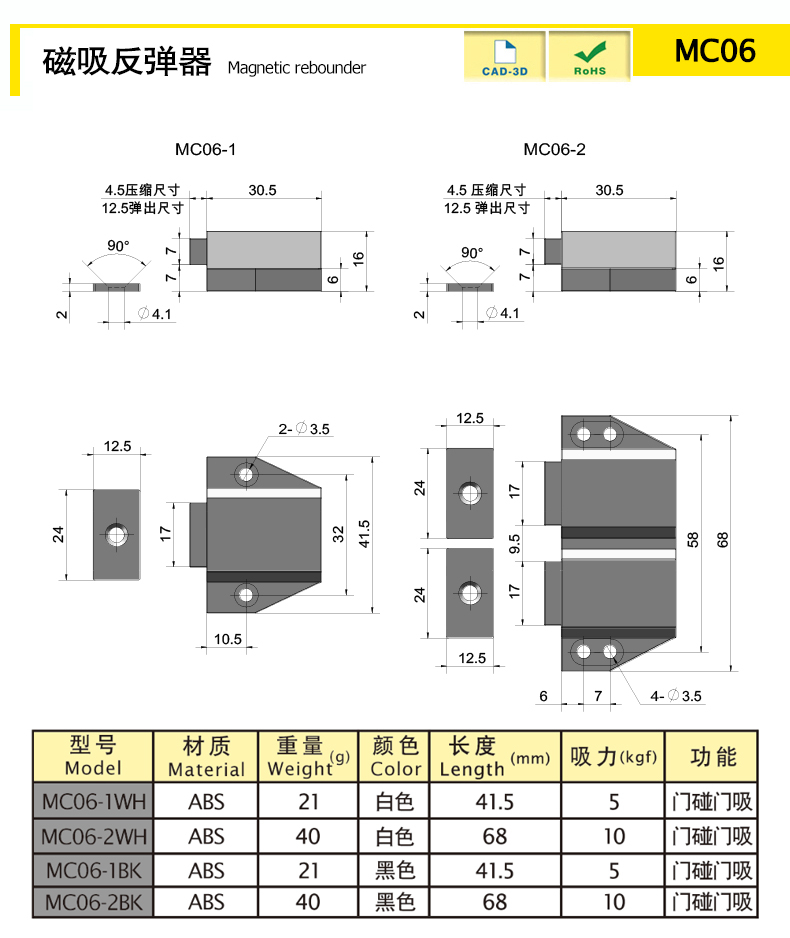

Product size diagram

Product size and properties

Model Number	Color	Length（mm）	Weight (g)	Material	Function
MC06-1WH	White	41.5	21	ABS	Grabber Catch Latches
MC06-2WH	White	68	40	ABS	Grabber Catch Latches
MC06-1BK	Black	41.5	21	ABS	Grabber Catch Latches
MC06-2BK	Black	68	40	ABS	Grabber Catch Latches

characteristic

Using a whole piece of high-quality ferrite magnet, the magnetic force is stable and durable.

Pull free rebound device, one press to open.

Available services

Product Name
Magnetic Rebounder

More information

If you have more technical advice，Please call
0535-6217008-801
