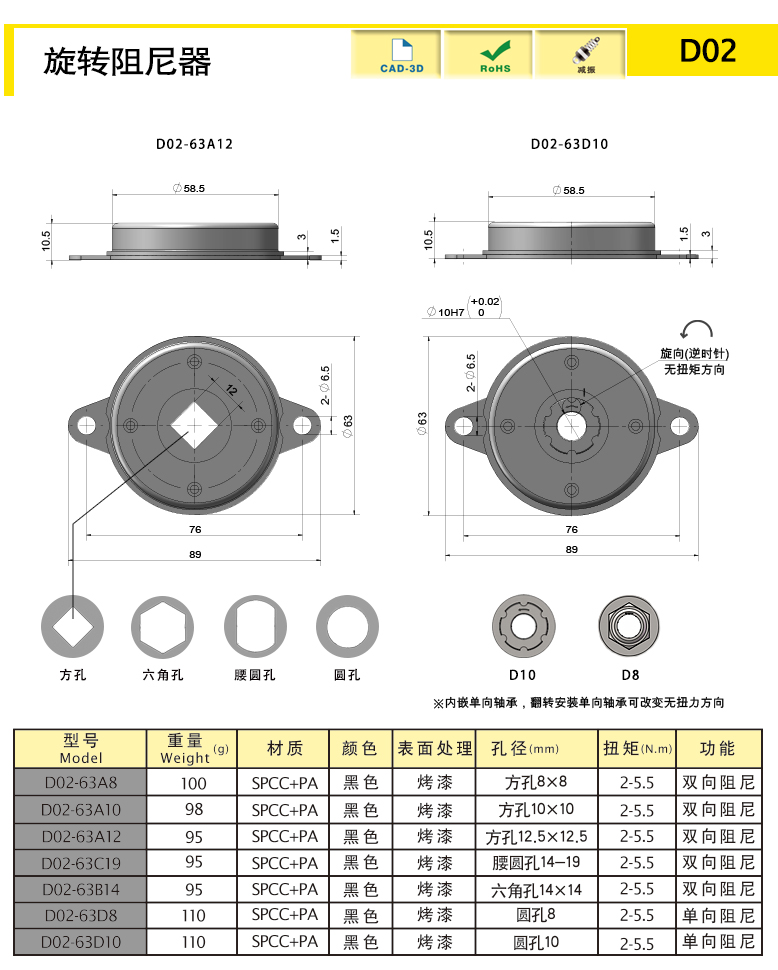

Product size diagram
Product size and properties
| Model Number | Color | Length（mm）  | Weight (g) | Material | Function | 3D DRAWINGS |
|---|---|---|---|---|---|---|
| D02-63A8 | Black | / | 100 | SPCC+PA | Bidirectional damping | |
| D02-63A10 | Black | / | 98 | SPCC+PA | Bidirectional damping | |
| D02-63A12 | Black | / | 95 | SPCC+PA | Bidirectional damping |
 |
| D02-63C19 | Black | / | 95 | SPCC+PA | Bidirectional damping |
|
| D02-63B14 | Black | / | 95 | SPCC+PA | Bidirectional damping |
|
| D02-63D8 | Black | / | 110 | SPCC+PA | Unidirectional damping | |
| D02-63D10 | Black | / | 110 | SPCC+PA | Unidirectional damping |
|
characteristic
Rotating speed<50rpm
Number of rotations ≤ 12c/min
Operating temperature -10/50 ℃
Shell material SPCC (cold rolled carbon steel plate)
Rotor material PA (nylon)
Number of rotations ≤ 12c/min
Operating temperature -10/50 ℃
Shell material SPCC (cold rolled carbon steel plate)
Rotor material PA (nylon)
Available services
Product Name
Rotary Damper
Rotary Damper
More information
If you have more technical advice，Please call0535-6217008-801
