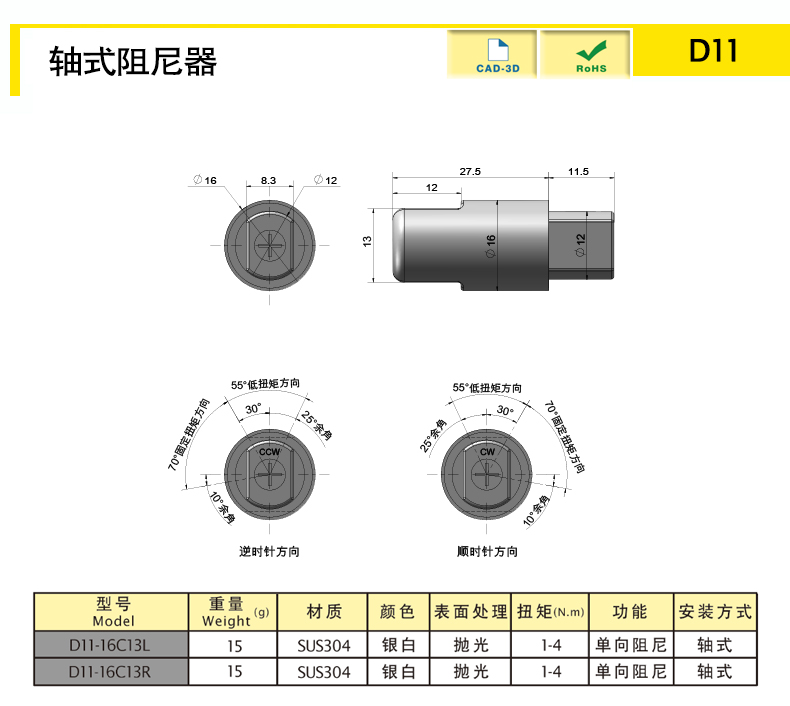

Product size diagram
Product size and properties
| Model Number | Color | Length（mm）  | Weight (g) | Material | Function | 3D DRAWINGS |
|---|---|---|---|---|---|---|
| D11-16C13L | Silver | / | 15 | SUS304 | Unidirectional damping |
 |
| D11-16C13R | Silver | / | 15 | SUS304 | Unidirectional damping |
characteristic
Torque direction:
L-shaped, CCW, counterclockwise
R-type, CW, clockwise
Maximum usage angle 110 °
Operating temperature~5/50 ℃
Shell material SUS304
Rotor material POM
L-shaped, CCW, counterclockwise
R-type, CW, clockwise
Maximum usage angle 110 °
Operating temperature~5/50 ℃
Shell material SUS304
Rotor material POM
Available services
Product Name
Axial damper
Axial damper
