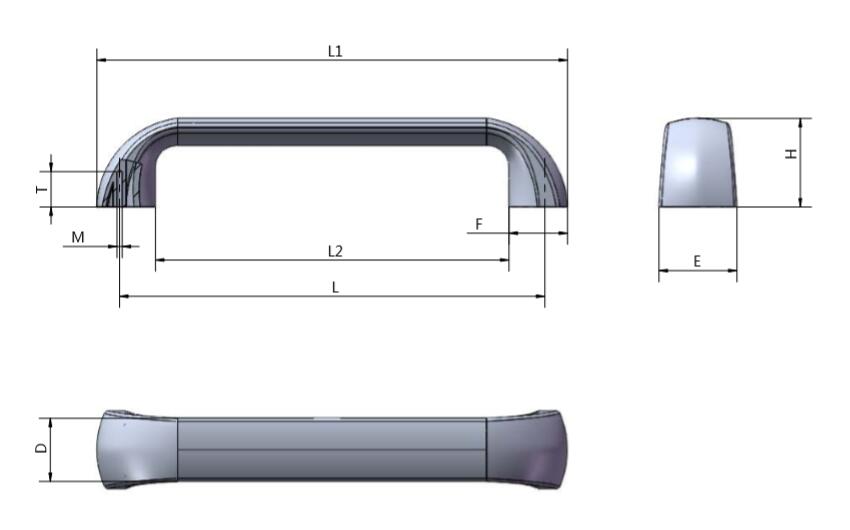

Product size diagram
Product size and properties
| Model Number | H  | L2 | L1 | Handle Diameter D | Length L | Weight（kg） | Color | Material | F | E | D1 | T | M | L3 | C | K | A | B | Tmin | R | D | W | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L33-300 | 62.5 | 250 | 332 | 44.5 | 300 | / | / | Aluminum Alloy | 41.5 | 55 | / | 25 | M6 | / | / | / | / | / | / | / | / | / |
 |
| L33-400 | 62.5 | 350 | 432 | 44.5 | 400 | / | / | Aluminum Alloy | 41.5 | 55 | / | 25 | M6 | / | / | / | / | / | / | / | / | / | |
| L33-500 | 62.5 | 450 | 532 | 44.5 | 500 | / | / | Aluminum Alloy | 41.5 | 55 | / | 25 | M6 | / | / | / | / | / | / | / | / | / |
characteristic
Tube body: Hard aluminum alloy with anodized,silver color, matte finish; Foot:Siver, matte finish
Unique body shape, fashionable and beautiful, comfortable to hold
Installation: blind hole with thread
Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging 4.Laser cutting Logo
