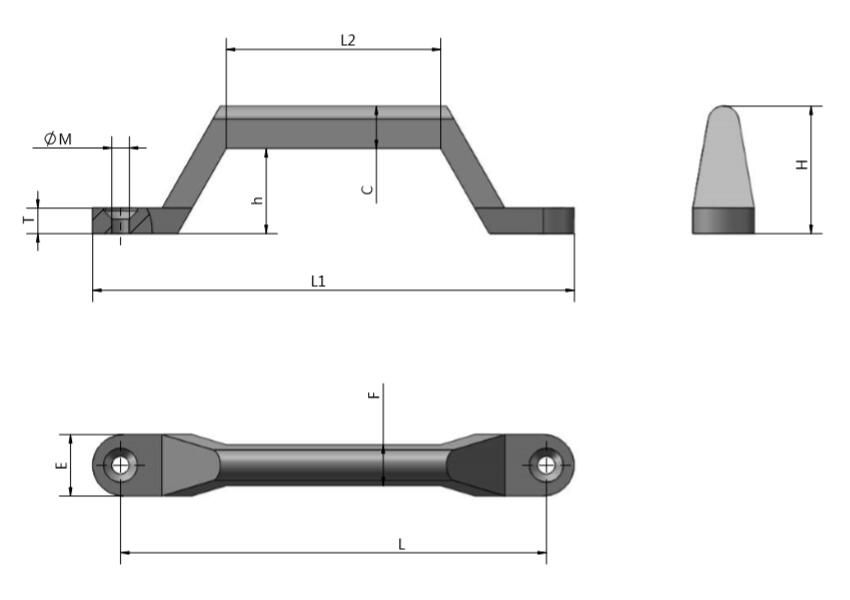

Product size diagram
Product size and properties
| Model Number | H  | L2 | L1 | Handle Diameter D | Length L | Weight（kg） | Color | Material | F | E | D1 | T | M | L3 | C | K | A | B | Tmin | R | D | W | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L35-100 | 32 | 46 | 115 | / | 100 | / | / | SUS304 | 11.5 | 18 | / | 6 | 4.2 | / | 12 | / | / | / | / | / | / | / |
 |
| L35-150 | 45 | 76 | 170 | / | 150 | / | / | SUS304 | 14.5 | 22 | / | 9 | 6.2 | / | 15 | / | / | / | / | / | / | / |
|
| L35-200 | 45 | 126 | 220 | / | 200 | / | / | SUS304 | 14.5 | 22 | / | 9 | 6.2 | / | 15 | / | / | / | / | / | / | / |
characteristic
Available services
Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging 4.Laser cutting Logo
Product Name
Handle
Handle
More information
If you have more technical advice，Please call0535-6217008-801
