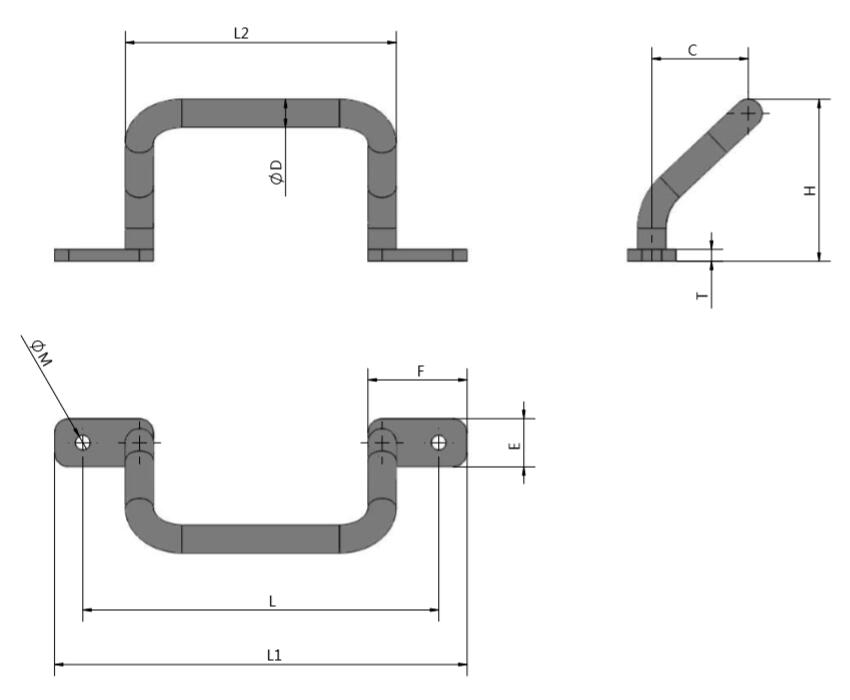

Product size diagram
Product size and properties
| Model Number | H  | L2 | L1 | Handle Diameter D | Length L | Weight（kg） | Color | Material | F | E | D1 | T | M | L3 | C | K | A | B | Tmin | R | D | W | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L36-110 | 57 | 80 | 130 | 10 | 110 | / | / | SUS304 | 35 | 17 | / | 4.2 | 5.2 | / | 34 | / | / | / | / | / | / | / |
 |
| L36-125 | 57 | 95 | 146 | 10 | 125 | / | / | SUS304 | 35 | 17 | / | 4.2 | 5.2 | / | 34 | / | / | / | / | / | / | / |
|
| L36-160 | 57 | 130 | 181 | 10 | 160 | / | / | SUS304 | 35 | 17 | / | 4.2 | 5.2 | / | 34 | / | / | / | / | / | / | / |
characteristic
Beautiful appearance, practical
Made of SUS304 material, Corrosion resistance
Available services
1.Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging 4.Laser cutting Logo
Product Name
Handle
Handle
More information
If you have more technical advice，Please call0535-6217008-801
