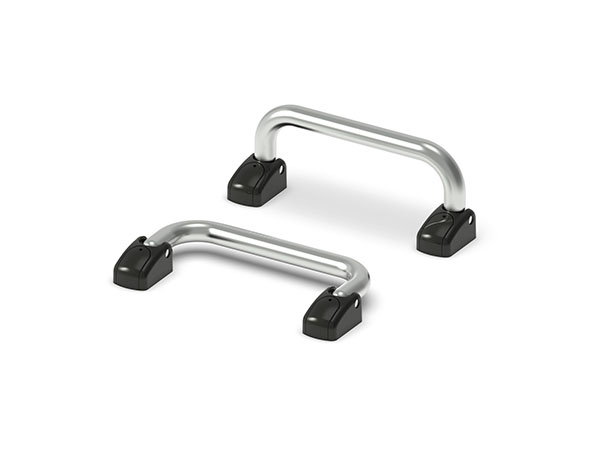

Handle

L37

Handle

application：widely used for kinds of medical equipment, kitchenware Electric control cabinet, testing instrument etc.

Product size diagram

Product size and properties

Model Number	H	L2	L1	Handle Diameter D	Length L	Weight（kg）	Color	Material	F	E	D1	T	M	L3	C	K	A	B	Tmin	R	D	W
L37-100	45	82	118	10	100	0.104	/	Steel chrome	40	27	/	10	6.2	/	15.4	/	34.5	55.5	/	/	/	/
L37-120	45	102	138	10	120	/	/	Steel chrome	40	27	/	10	6.2	/	15.4	/	34.5	55.5	/	/	/	/
L37-180	45	162	198	10	180	/	/	Steel chrome	40	27	/	10	6.2	/	15.4	/	34.5	55.5	/	/	/	/

characteristic

Folding design, reduce surface protrusion

Both ends of opening and closing can be fixed.

Available services

1.Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging 4.Laser cutting Logo
