Handle

L43

Handle

Hard aluminum anodized tube body

application：Machine tools, automation equipment, testing instruments, medical instruments

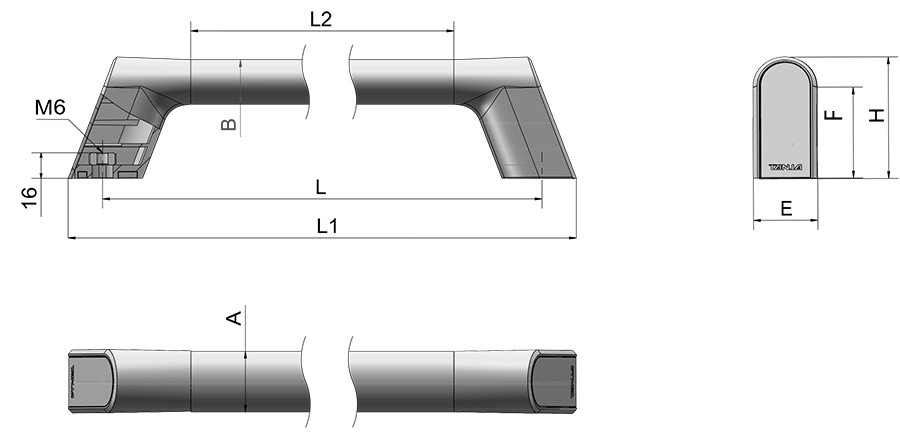

Product size diagram

Product size and properties

Model Number	H	L2	L1	Handle Diameter D	Length L	Weight（kg）	Color	Material	F	E	D1	T	M	L3	C	K	A	B	Tmin	R	D	W
L43-26-160	52	85	190	/	160	0.0724	/	Aluminum Alloy	38.7	27.4	/	/	/	/	/	/	26	19	/	/	/	/
L43-26-200	52	125	230	/	200	/	/	Aluminum Alloy	38.7	27.4	/	/	/	/	/	/	26	19	/	/	/	/
L43-26-250	52	175	280	/	250	/	/	Aluminum Alloy	38.7	27.4	/	/	/	/	/	/	26	19	/	/	/	/
L43-26-300	52	225	330	/	300	/	/	Aluminum Alloy	38.7	27.4	/	/	/	/	/	/	26	19	/	/	/	/
L43-26-350	52	275	380	/	350	/	/	Aluminum Alloy	38.7	27.4	/	/	/	/	/	/	26	19	/	/	/	/
L43-26-400	52	325	430	/	400	/	/	Aluminum Alloy	38.7	27.4	/	/	/	/	/	/	26	19	/	/	/	/

characteristic

tubular handle

Foot, polyamide (PA), side cover, polyamide (PA)

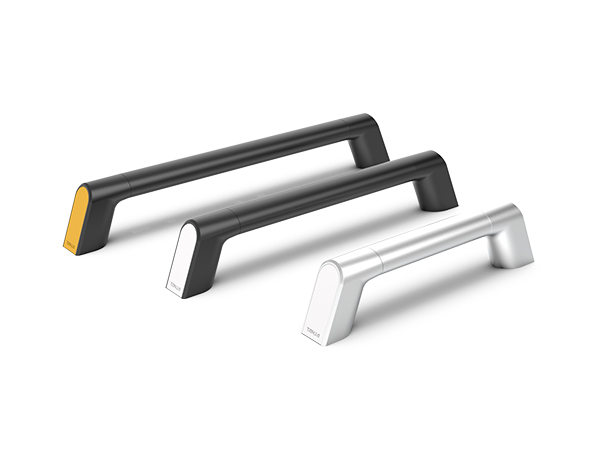

W type: tube body anodized, silver, matte finish,Foot, silver , matte finish;Side cover, white, matte finish

Type B: tube body black, matte finish;Foot black, matte finish;Side cover, black, matte finish

Type S: tube body anodized, silver , matte finish;Foot, black, matte finish;Side cover, silver white, matte finish

Type N: tube body black, matte finish;Foot, black, matte finish;Side cover, yellow, matte finish

Installation:The foot has a through hole for the hexagon screw M6

Available services

1. Non-standard, Length can be customized; 2. Ultrasonic cleaning and dust-free packaging 3.Laser cutting Logo
