Handle

L45

Handle

Hard aluminum anodized tube body

application：Machine tools, automation equipment, testing instruments, medical instruments

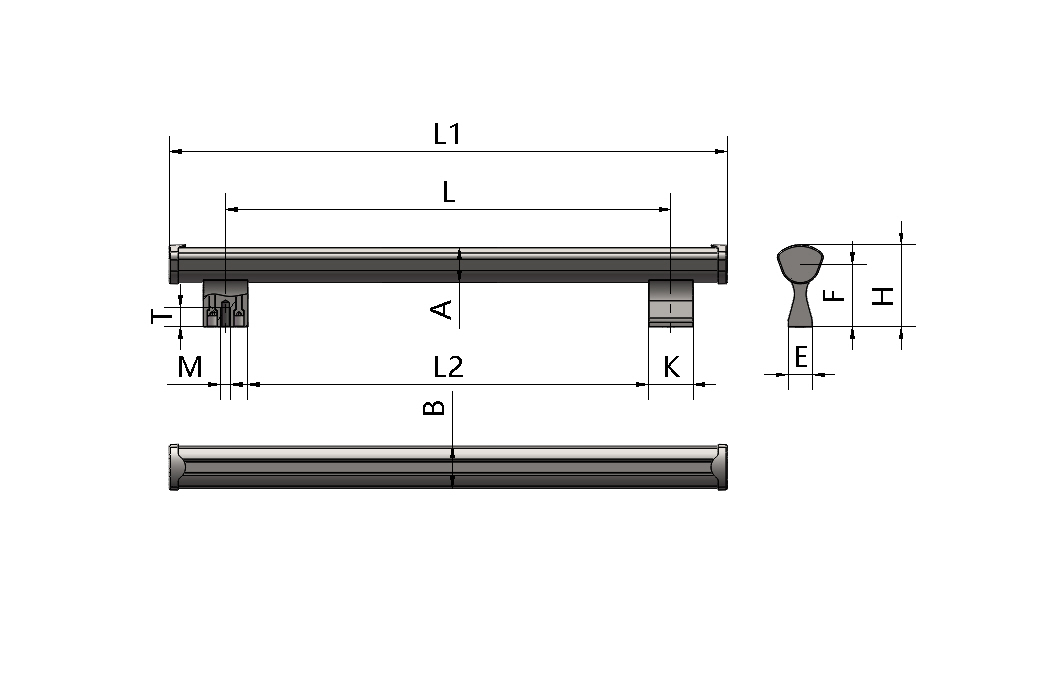

Product size diagram

Product size and properties

Model Number	H	L2	L1	Handle Diameter D	Length L	Weight（kg）	Color	Material	F	E	D1	T	M	L3	C	K	A	B	Tmin	R	D	W
L45-38-300-R/S	74	260	400	/	300	0.4	/	Aluminum Alloy	56	22	/	17	M8	/	/	40	31	38	/	/	/	/
L45-38-400-R/S	74	360	500	/	400	/	/	Aluminum Alloy	56	22	/	17	M8	/	/	40	31	38	/	/	/	/
L45-38-500-R/S	74	460	600	/	500	/	/	Aluminum Alloy	56	22	/	17	M8	/	/	40	31	38	/	/	/	/
L45-38-600-R/S	74	560	700	/	600	/	/	Aluminum Alloy	56	22	/	17	M8	/	/	40	31	38	/	/	/	/
L45-38-800-R/S	74	760	900	/	800	/	/	Aluminum Alloy	56	22	/	17	M8	/	/	40	31	38	/	/	/	/
L45-38-1000-R/S	74	960	1100	/	1000	/	/	Aluminum Alloy	56	22	/	17	M8	/	/	40	31	38	/	/	/	/

characteristic

Elliptical tube handle:

Advanced shape design, beautiful appearance, firm and stable

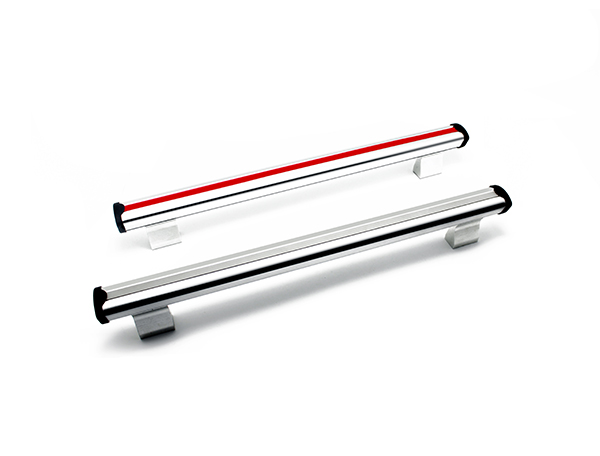

R type: tube body anodized, silver, matte finish; Foot silver , matte finish;red decorative strip

S type: tube body anodized, silver, matte finish; Foot silver , matte finish; silver-gray decorative strip

Tube body: hard aluminum alloy anodizing; feet: hard aluminum alloy anodizing; tube end cover: polyamide (PA)

Installation: pin with threaded blind hole

Available services

1. Non-standard, Length can be customized; 2. Ultrasonic cleaning and dust-free packaging 3.Laser cutting Logo
