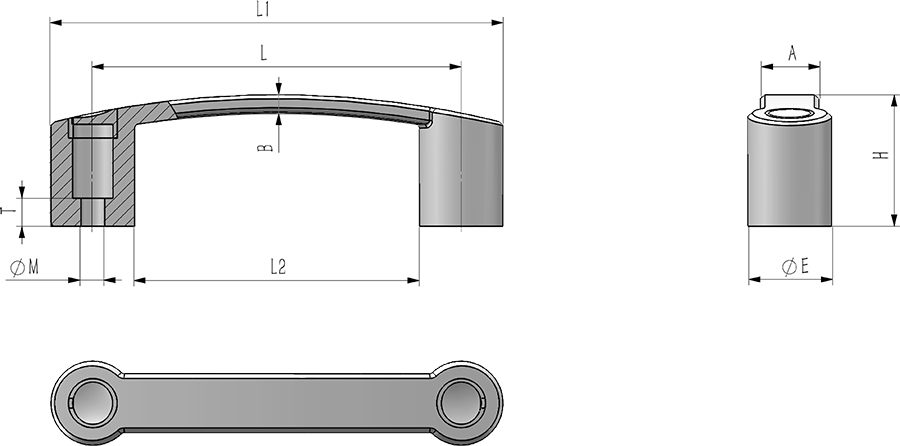

Product size diagram
Product size and properties
| Model Number | H  | L2 | L1 | Handle Diameter D | Length L | Weight（kg） | Color | Material | F | E | D1 | T | M | L3 | C | K | A | B | Tmin | R | D | W | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L50-93-R | 35 | 67 | 117 | / | 93.5 | / | / | Polyamide(PA) | / | 25.4 | / | 6 | 6.5 | / | / | / | 17 | 5.2 | / | / | / | / | |
| L50-93-Y | 35 | 67 | 117 | / | 93.5 | / | / | Polyamide(PA) | / | 25.4 | / | 6 | 6.5 | / | / | / | 17 | 5.2 | / | / | / | / | |
| L50-93-B | 35 | 67 | 117 | / | 93.5 | / | / | Polyamide(PA) | / | 25.4 | / | 6 | 6.5 | / | / | / | 17 | 5.2 | / | / | / | / | |
| L50-93-W | 35 | 67 | 117 | / | 93.5 | / | / | Polyamide(PA) | / | 25.4 | / | 6 | 6.5 | / | / | / | 17 | 5.2 | / | / | / | / | |
| L50-117-R | 40 | 87 | 144 | / | 117 | / | / | Polyamide(PA) | / | 28.5 | / | 8 | 8.4 | / | / | / | 20 | 6.5 | / | / | / | / | |
| L50-117-Y | 40 | 87 | 144 | / | 117 | / | / | Polyamide(PA) | / | 28.5 | / | 8 | 8.4 | / | / | / | 20 | 6.5 | / | / | / | / | |
| L50-117-B | 40 | 87 | 144 | / | 117 | / | / | Polyamide(PA) | / | 28.5 | / | 8 | 8.4 | / | / | / | 20 | 6.5 | / | / | / | / | |
| L50-117-W | 40 | 87 | 144 | / | 117 | / | / | Polyamide(PA) | / | 28.5 | / | 8 | 8.4 | / | / | / | 20 | 6.5 | / | / | / | / | |
| L50-132-R | 47 | 102 | 162 | / | 132 | / | / | Polyamide(PA) | / | 30 | / | 9 | 8.5 | / | / | / | 21 | 6.8 | / | / | / | / |
 |
| L50-132-Y | 47 | 102 | 162 | / | 132 | / | / | Polyamide(PA) | / | 30 | / | 9 | 8.5 | / | / | / | 21 | 6.8 | / | / | / | / |
|
| L50-132-B | 47 | 102 | 162 | / | 132 | / | / | Polyamide(PA) | / | 30 | / | 9 | 8.5 | / | / | / | 21 | 6.8 | / | / | / | / |
|
| L50-132-W | 47 | 102 | 162 | / | 132 | / | / | Polyamide(PA) | / | 30 | / | 9 | 8.5 | / | / | / | 21 | 6.8 | / | / | / | / |
|
characteristic

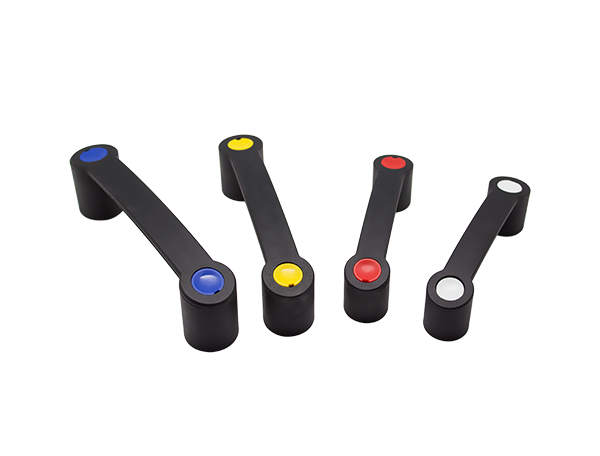

Bending handle:
Handle body, polyamide (PA), black matte finish
Type R: red end cover (PC)
Type Y: yellow end cover (PC)
Type B: blue end cover (PC)
Type W: white end cover (PC)
Installation: the foot has a through-hole for hexagon socket screw M6/M8
Unique arc handle shape, fashion and beautiful, hand grip comfortable, firm and stable
Available services
1. Non-standard, Length can be customized; 2. Ultrasonic cleaning and dust-free packaging 3.Laser cutting Logo
Product Name
Handle
Handle
More information
If you have more technical advice，Please call0535-6217008-801
