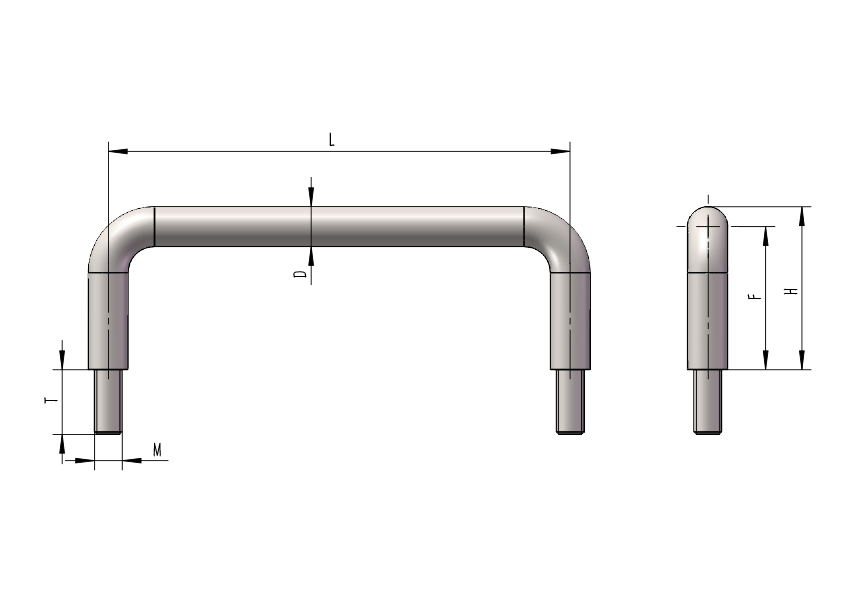

Product size diagram
Product size and properties
| Model Number | H  | L2 | L1 | Handle Diameter D | Length L | Weight（kg） | Color | Material | F | E | D1 | T | M | L3 | C | K | A | B | Tmin | R | D | W | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L13-D8-100-M5 | 35.5 | / | / | 8 | 100 | / | / | Steel chrome | 31 | / | / | 14 | M5 | / | / | / | / | / | / | / | / | / | |
| L13-D8-120-M5 | 35.5 | / | / | 8 | 120 | / | / | Steel chrome | 31 | / | / | 14 | M5 | / | / | / | / | / | / | / | / | / | |
| L13-D8-100-M6 | 35.5 | / | / | 8 | 100 | / | / | Steel chrome | 31 | / | / | 14 | M6 | / | / | / | / | / | / | / | / | / |
 |
| L13-D8-120-M6 | 35.5 | / | / | 8 | 120 | / | / | Steel chrome | 31 | / | / | 14 | M6 | / | / | / | / | / | / | / | / | / | |
| L13B-D8-100-M5 | 35.5 | / | / | 8 | 100 | / | / | SUS304 | 31 | / | / | 14 | M5 | / | / | / | / | / | / | / | / | / | |
| L13B-D8-120-M5 | 35.5 | / | / | 8 | 120 | / | / | SUS304 | 31 | / | / | 14 | M5 | / | / | / | / | / | / | / | / | / | |
| L13B-D8-100-M6 | 35.5 | / | / | 8 | 100 | / | / | SUS304 | 31 | / | / | 14 | M6 | / | / | / | / | / | / | / | / | / |
|
| L13B-D8-120-M6 | 35.5 | / | / | 8 | 120 | / | / | SUS304 | 31 | / | / | 14 | M6 | / | / | / | / | / | / | / | / | / |
characteristic
Beautiful appearance, practical
Made of SUS304 material, Corrosion resistance
Available services
1.Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging 4.Laser cutting Logo

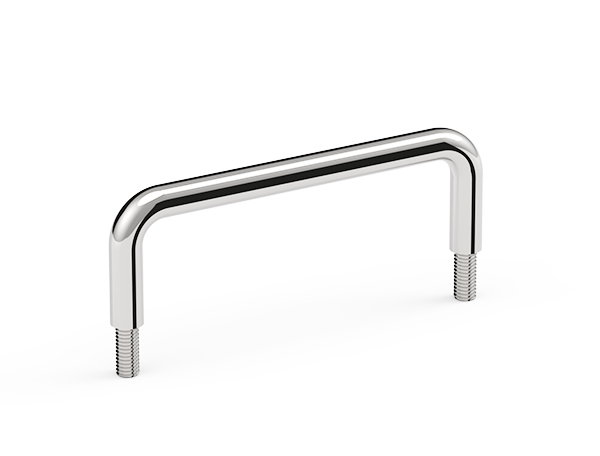

Product Name
Handle
Handle
More information
If you have more technical advice，Please call0535-6217008-801
