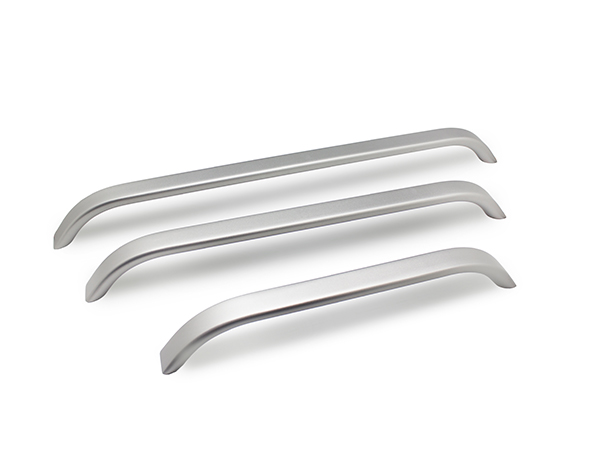

Handle

L53

Handle

Hard aluminum anodized

application:Testing equipment, kitchenware, food, machinery, etc

catalogue CAD data

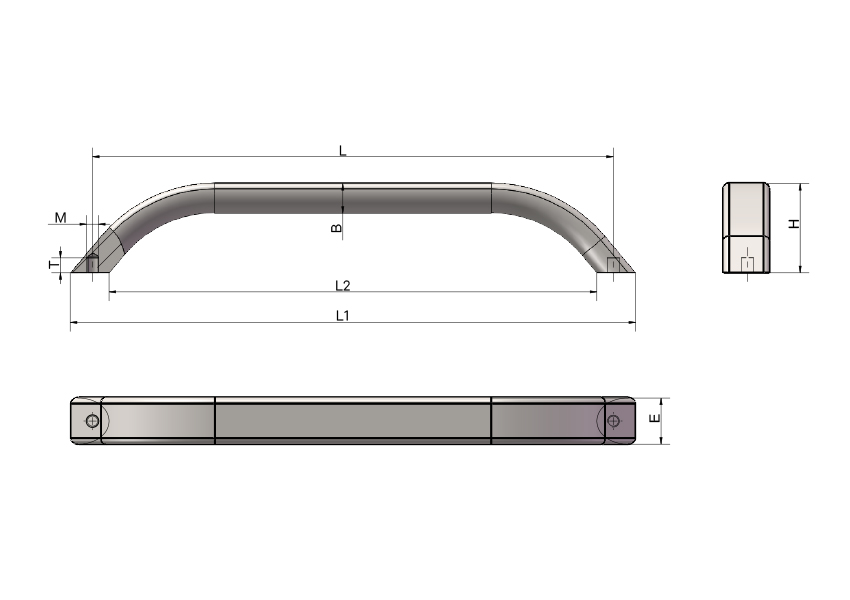

Product size diagram
Product size and properties
Model Number H bottomL2 bottomL1 bottomHandle Diameter D bottomLength L bottomWeight(kg) bottomColor Material F bottomE bottomD1 bottomT bottomM bottomL3 bottomC bottomK bottomA bottomB bottomTmin bottomR bottomD W 3D DRAWINGS
L53-300-31-B 60 278 330 / 300 / / Aluminum Alloy / 31 / 10 M8 / / / / 20 / / / /
L53-300-31-W 60 278 330 / 300 / / Aluminum Alloy / 31 / 10 M8 / / / / 20 / / / /
L53-350-31-B 60 328 380 / 350 / / Aluminum Alloy / 31 / 10 M8 / / / / 20 / / / /
L53-350-31-W 60 328 380 / 350 / / Aluminum Alloy / 31 / 10 M8 / / / / 20 / / / /
L53-400-31-B 60 378 430 / 400 / / Aluminum Alloy / 31 / 10 M8 / / / / 20 / / / /
L53-400-31-W 60 378 430 / 400 / / Aluminum Alloy / 31 / 10 M8 / / / / 20 / / / /
L53-500-31-B 60 478 530 / 500 / / Aluminum Alloy / 31 / 10 M8 / / / / 20 / / / /
L53-500-31-W 60 478 530 / 500 / / Aluminum Alloy / 31 / 10 M8 / / / / 20 / / / /
L53-600-31-B 60 578 630 / 600 / / Aluminum Alloy / 31 / 10 M8 / / / / 20 / / / /
L53-600-31-W 60 578 630 / 600 / / Aluminum Alloy / 31 / 10 M8 / / / / 20 / / / /
characteristic

Bent handle:

Type W: tube anodized, silvery white, matte finish

Type B: black tube body, matte finish

Installation: blind hole with thread

Unique oval handle shape, stylish and beautiful, comfortable to hold, firm and stable



Available services
1. Non-standard, Length can be customized; 2. Ultrasonic cleaning and dust-free packaging 3.Laser cutting Logo
