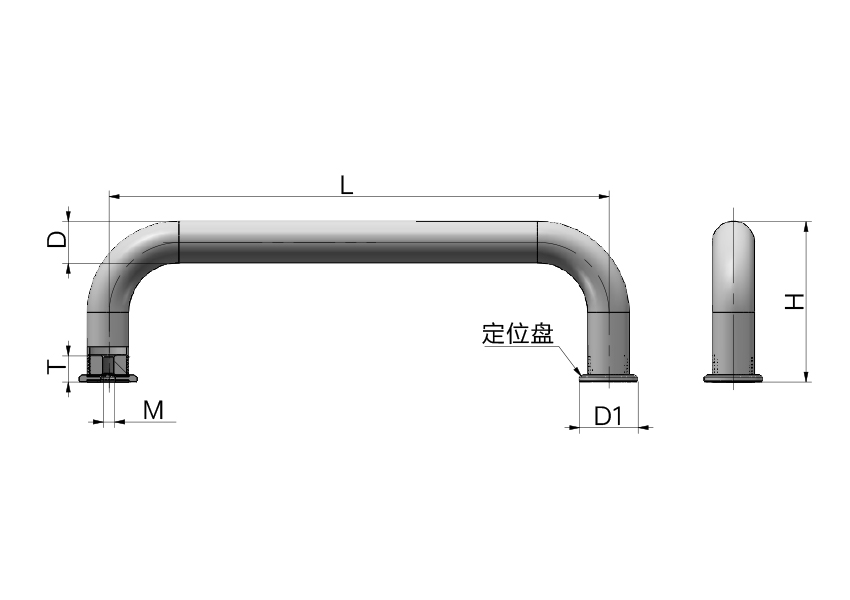

Product size diagram
Product size and properties
| Model Number | H  | L2 | L1 | Handle Diameter D | Length L | Weight（kg） | Color | Material | F | E | D1 | T | M | L3 | C | K | A | B | Tmin | R | D | W | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L31-D25-200 | 95 | / | / | 25 | 200 | / | / | Steel | / | / | 35 | 16 | M8 | / | / | / | / | / | / | / | / | / |
 |
| L31-D25-300 | 95 | / | / | 25 | 300 | / | / | Steel | / | / | 35 | 16 | M8 | / | / | / | / | / | / | / | / | / | |
| L31-D25-400 | 95 | / | / | 25 | 400 | / | / | Steel | / | / | 35 | 16 | M8 | / | / | / | / | / | / | / | / | / |
|
characteristic

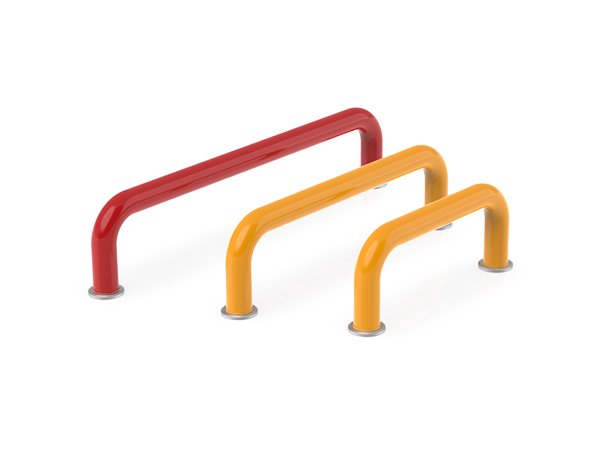

Tubular bending handle:
Positioning disk: available on demand
Installation: with threaded hole
The positioning disk can be accurately matched with the mounting hole of the cabinet
Positioning disk: available on demand
Installation: with threaded hole
The positioning disk can be accurately matched with the mounting hole of the cabinet
Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging 4.Laser cutting Logo
