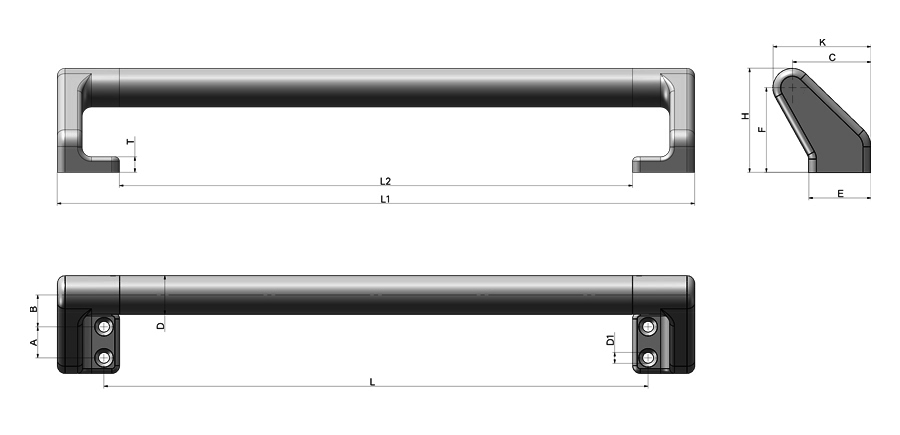

Product size diagram
Product size and properties
| Model Number | H  | L2 | L1 | Handle Diameter D | Length L | Weight（kg） | Color | Material | F | E | D1 | T | M | L3 | C | K | A | B | Tmin | R | D | W | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L57-D25-200 | 67 | 180 | 260 | 25 | 200 | 0.14 | / | Aluminum Alloy | 54.5 | 40 | 7 | 10 | / | / | / | 63 | 20 | 20.5 | / | / | / | / |
 |
| L57-D25-250 | 67 | 230 | 310 | 25 | 250 | 0.16 | / | Aluminum Alloy | 54.5 | 40 | 7 | 10 | / | / | / | 63 | 20 | 20.5 | / | / | / | / |
|
| L57-D25-300 | 67 | 280 | 360 | 25 | 300 | 0.18 | / | Aluminum Alloy | 54.5 | 40 | 7 | 10 | / | / | / | 63 | 20 | 20.5 | / | / | / | / |
|
| L57-D25-350 | 67 | 330 | 410 | 25 | 350 | 0.20 | / | Aluminum Alloy | 54.5 | 40 | 7 | 10 | / | / | / | 63 | 20 | 20.5 | / | / | / | / |
|
| L57-D25-400 | 67 | 380 | 460 | 25 | 400 | 0.22 | / | Aluminum Alloy | 54.5 | 40 | 7 | 10 | / | / | / | 63 | 20 | 20.5 | / | / | / | / |
|
| L57-D25-600 | 67 | 580 | 660 | 25 | 600 | 0.22 | / | Aluminum Alloy | 54.5 | 40 | 7 | 10 | / | / | / | 63 | 20 | 20.5 | / | / | / | / |
|
characteristic
Tubular handle
Feet: Polyamide (PA), black, matte finish
Tube body: aluminum alloy,black, matte finish
Installation: feet with through holes for M6
Available services
1. Non-standard, Length can be customized; 2. Ultrasonic cleaning and dust-free packaging 3.Laser cutting Logo
