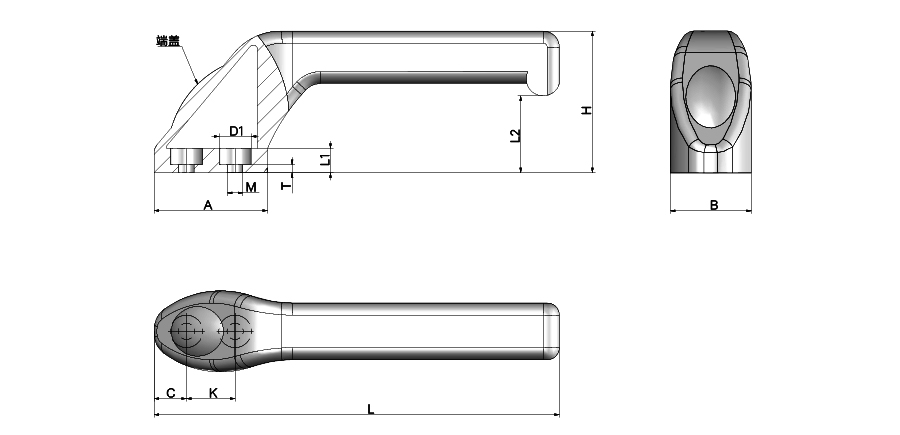

Product size diagram
Product size and properties
| Model Number | H  | L2 | L1 | Handle Diameter D | Length L | Weight（kg） | Color | Material | F | E | D1 | T | M | L3 | C | K | A | B | Tmin | R | D | W | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L58-80 | 29 | 18 | 5 | / | 80 | 0.016 | / | Polyamide(PA) | / | / | 6 | 2 | 3 | / | 6 | 12 | 24 | / | / | / | / | / |
 |
| L58-100 | 35 | 19 | 6 | / | 100 | 0.03 | / | Polyamide(PA) | / | / | 8 | 2 | 4 | / | 8 | 12 | 28 | / | / | / | / | / |
|
| L58-147 | 50.5 | 30 | 9 | / | 147 | 0.082 | / | Polyamide(PA) | / | / | 11 | 3 | 6 | / | 9 | 19 | 38 | / | / | / | / | / |
|
characteristic

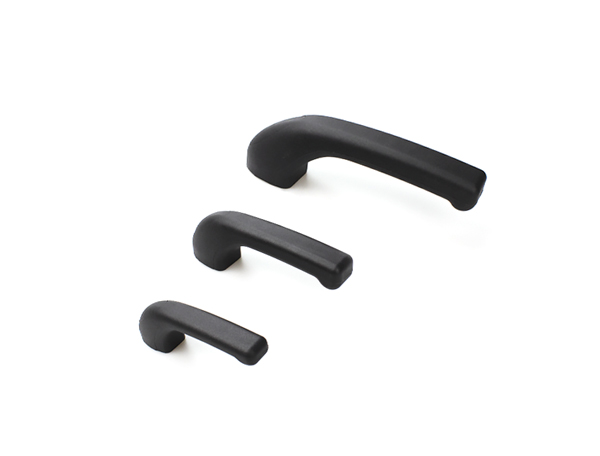

Bend handle
Handle body, polyamide (PA), black matte finish
Installation: the foot has a through-hole for hexagon socket screw M3/M4/M6
Available services
1. Non-standard, Length can be customized; 2. Ultrasonic cleaning and dust-free packaging 3.Laser cutting Logo
Product Name
Cantilever Handle
Cantilever Handle
More information
If you have more technical advice，Please call0535-6217008-801
