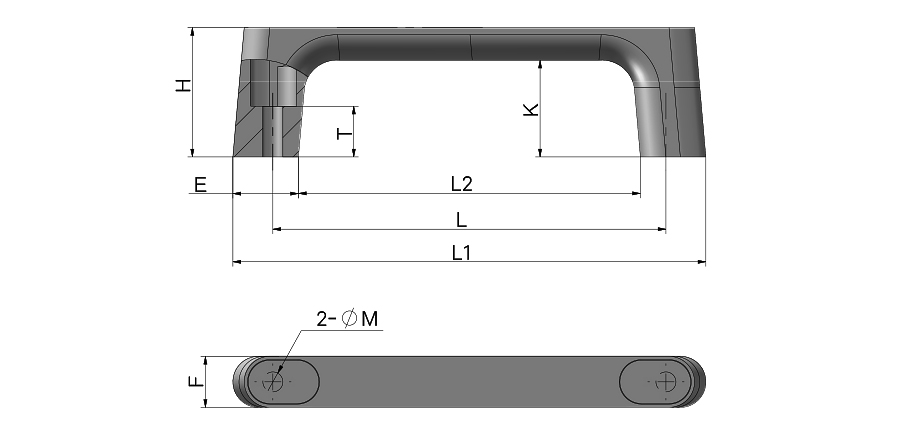

Product size diagram
Product size and properties
| Model Number | H  | L2 | L1 | Handle Diameter D | Length L | Weight（kg） | Color | Material | F | E | D1 | T | M | L3 | C | K | A | B | Tmin | R | D | W | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L59-100-BK | 39.5 | 84 | 124 | / | 100 | / | / | Zinc Alloy | 15.6 | 20 | / | 15.5 | 6.1 | / | / | 29.5 | / | / | / | / | / | / | |
| L59-100-BU | 39.5 | 84 | 124 | / | 100 | / | / | Zinc Alloy | 15.6 | 20 | / | 15.5 | 6.1 | / | / | 29.5 | / | / | / | / | / | / | |
| L59-100-GY | 39.5 | 84 | 124 | / | 100 | / | / | Zinc Alloy | 15.6 | 20 | / | 15.5 | 6.1 | / | / | 29.5 | / | / | / | / | / | / | |
| L59-100-WH | 39.5 | 84 | 124 | / | 100 | / | / | Zinc Alloy | 15.6 | 20 | / | 15.5 | 6.1 | / | / | 29.5 | / | / | / | / | / | / | |
| L59-120-BK | 39.5 | 104 | 144 | / | 120 | / | / | Zinc Alloy | 15.6 | 20 | / | 15.5 | 6.1 | / | / | 29.5 | / | / | / | / | / | / |
 |
| L59-120-BU | 39.5 | 104 | 144 | / | 120 | / | / | Zinc Alloy | 15.6 | 20 | / | 15.5 | 6.1 | / | / | 29.5 | / | / | / | / | / | / | |
| L59-120-GY | 39.5 | 104 | 144 | / | 120 | / | / | Zinc Alloy | 15.6 | 20 | / | 15.5 | 6.1 | / | / | 29.5 | / | / | / | / | / | / | |
| L59-120-WH | 39.5 | 104 | 144 | / | 120 | / | / | Zinc Alloy | 15.6 | 20 | / | 15.5 | 6.1 | / | / | 29.5 | / | / | / | / | / | / |
characteristic
Body: zinc alloy, chrome plated (pearl chrome) silver white
BK: cover black ABS
BU: cover plate blue ABS
GY: cover grey ABS
WH: cover white ABS
BK: cover black ABS
BU: cover plate blue ABS
GY: cover grey ABS
WH: cover white ABS
Available services
1. Non-standard, Length can be customized; 2. Optional screws ; 3.Ultrasonic cleaning and dust-free packaging 4.Laser cutting Logo

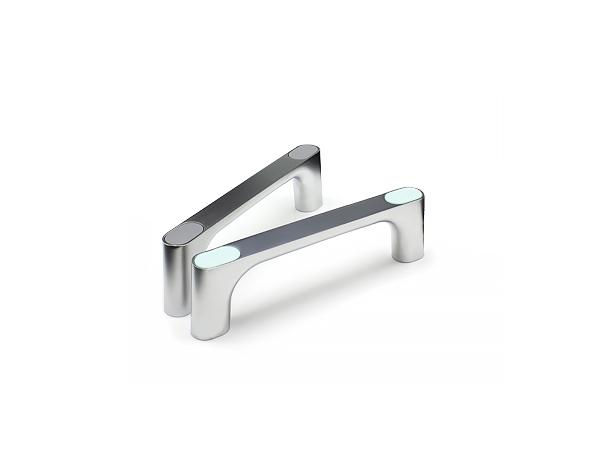

Product Name
U handle
U handle
