Handle

L60

Handle

Brushed/Powder coating

application：Machine tool equipment, automation equipment, testing equipment, medical equipment

catalogue CAD data

Product size diagram

Product size and properties

Model Number	H	L2	L1	Handle Diameter D	Length L	Weight（kg）	Color	Material	F	E	D1	T	M	L3	C	K	A	B	Tmin	R	D	W
L60B1-D14-96-BK	36	86	132	14	96	0.068	/	SUS201	29	14	/	12	M4	/	/	23	/	/	/	/	/	/
L60B1-D14-128-BK	36	118	164	14	128	0.074	/	SUS201	29	14	/	12	M4	/	/	23	/	/	/	/	/	/
L60B1-D14-160-BK	36	150	196	14	160	0.078	/	SUS201	29	14	/	14	M4	/	/	23	/	/	/	/	/	/
L60B1-D14-96-H	36	86	132	14	96	0.067	/	SUS201	29	14	/	12	M4	/	/	23	/	/	/	/	/	/
L60B1-D14-128-H	36	118	164	14	128	0.072	/	SUS201	29	14	/	12	M4	/	/	23	/	/	/	/	/	/
L60B1-D14-160-H	36	150	196	14	160	0.076	/	SUS201	29	14	/	12	M4	/	/	23	/	/	/	/	/	/

characteristic

Material: SUS201/SUS304 optional

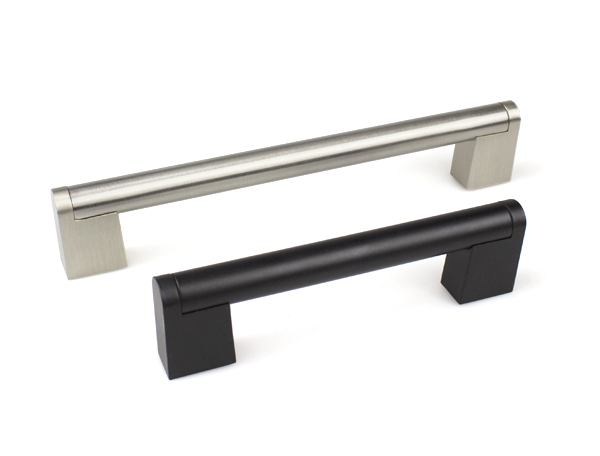

W type: surface brushed, natural color (silver white)
Type B: Surface powder coating , black matte
Installation: feet with threaded blind holes

Available services

1. Non-standard, Length can be customized; 2. Ultrasonic cleaning and dust-free packaging 3.Laser cutting Logo

Product Name
Handle

More information

If you have more technical advice，Please call
0535-6217008-801
