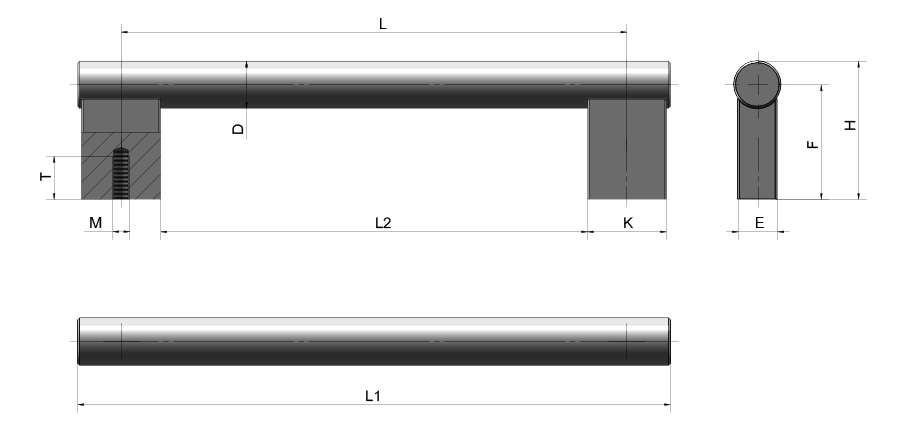

Product size diagram
Product size and properties
| Model Number | H  | L2 | L1 | Handle Diameter D | Length L | Weight（kg） | Color | Material | F | E | D1 | T | M | L3 | C | K | A | B | Tmin | R | D | W | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L61B-D12-96-H | 35 | 76 | 118 | 12 | 96 | 0.044 | / | SUS201 | 29 | 10 | / | 12 | M4 | / | / | 20 | / | / | / | / | / | / |
 |
| L61B1-D12-128-H | 35 | 108 | 150 | 12 | 128 | 0.047 | / | SUS201 | 29 | 10 | / | 12 | M4 | / | / | 20 | / | / | / | / | / | / |
|
| L61B1-D12-160-H | 35 | 140 | 182 | 12 | 160 | 0.05 | / | SUS201 | 29 | 10 | / | 12 | M4 | / | / | 20 | / | / | / | / | / | / |
|
| L61B1-D12-192-H | 35 | 172 | 214 | 12 | 192 | 0.055 | / | SUS201 | 29 | 10 | / | 12 | M4 | / | / | 20 | / | / | / | / | / | / |
|
| L61B1-D12-224-H | 35 | 204 | 246 | 12 | 224 | 0.06 | / | SUS201 | 29 | 10 | / | 12 | M4 | / | / | 20 | / | / | / | / | / | / |
|
| L61B1-D12-256-H | 35 | 236 | 278 | 12 | 256 | 0.065 | / | SUS201 | 29 | 10 | / | 12 | M4 | / | / | 20 | / | / | / | / | / | / |
|
| L61B1-D12-96-BK | 35 | 76 | 118 | 12 | 96 | 0.044 | / | SUS201 | 29 | 10 | / | 12 | M4 | / | / | 20 | / | / | / | / | / | / | |
| L61B1-D12-128-BK | 35 | 108 | 150 | 12 | 128 | 0.047 | / | SUS201 | 29 | 10 | / | 12 | M4 | / | / | 20 | / | / | / | / | / | / | |
| L61B1-D12-160-BK | 35 | 140 | 182 | 12 | 160 | 0.05 | / | SUS201 | 29 | 10 | / | 12 | M4 | / | / | 20 | / | / | / | / | / | / | |
| L61B1-D12-192-BK | 35 | 172 | 214 | 12 | 192 | 0.055 | / | SUS201 | 29 | 10 | / | 12 | M4 | / | / | 20 | / | / | / | / | / | / | |
| L61B1-D12-224-BK | 35 | 204 | 246 | 12 | 224 | 0.06 | / | SUS201 | 29 | 10 | / | 12 | M4 | / | / | 20 | / | / | / | / | / | / | |
| L61B1-D12-256-BK | 35 | 236 | 278 | 12 | 256 | 0.065 | / | SUS201 | 29 | 10 | / | 12 | M4 | / | / | 20 | / | / | / | / | / | / |
characteristic
Material: SUS201/SUS304 optional

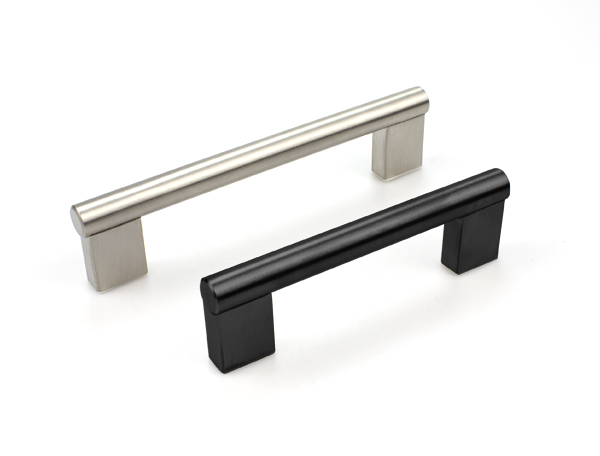

W type: surface brushed, natural color (silver white)
Type B: Surface powder coating , black matte
Installation: feet with threaded blind holes
W type: surface brushed, natural color (silver white)
Type B: Surface powder coating , black matte
Installation: feet with threaded blind holes
Available services
1. Non-standard, Length can be customized; 2. Ultrasonic cleaning and dust-free packaging 3.Laser cutting Logo
