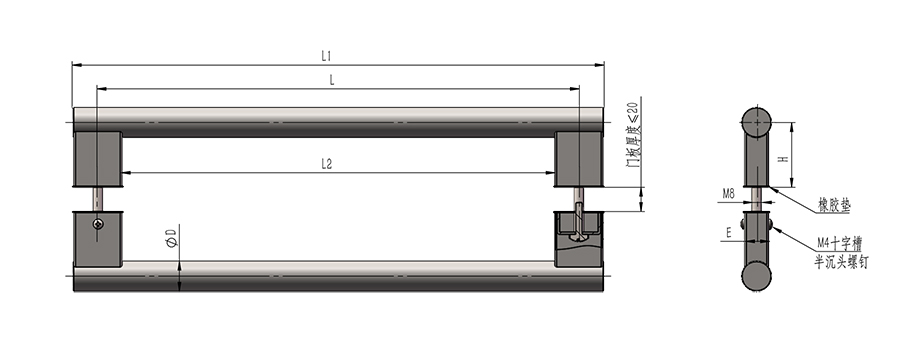

Product size diagram
Product size and properties
| Model Number | H  | L2 | L1 | Handle Diameter D | Length L | Weight（kg） | Color | Material | F | E | D1 | T | M | L3 | C | K | A | B | Tmin | R | D | W | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L64-D25-400 | 53.5 | 360 | 440 | 25 | 400 | / | / | SUS304 | / | 20 | / | / | M8 | / | / | / | / | / | / | / | / | / |
 |
| L64-D25-500 | 53.5 | 460 | 540 | 25 | 500 | / | / | SUS304 | / | 20 | / | / | M8 | / | / | / | / | / | / | / | / | / | |
| L64-D25-600 | 53.5 | 560 | 640 | 25 | 600 | / | / | SUS304 | / | 20 | / | / | M8 | / | / | / | / | / | / | / | / | / | |
| L64-D25-800 | 53.5 | 760 | 840 | 25 | 800 | / | / | SUS304 | / | 20 | / | / | M8 | / | / | / | / | / | / | / | / | / | |
| L64-D25-1000 | 53.5 | 920 | 1000 | 25 | 960 | / | / | SUS304 | / | 20 | / | / | M8 | / | / | / | / | / | / | / | / | / |
characteristic

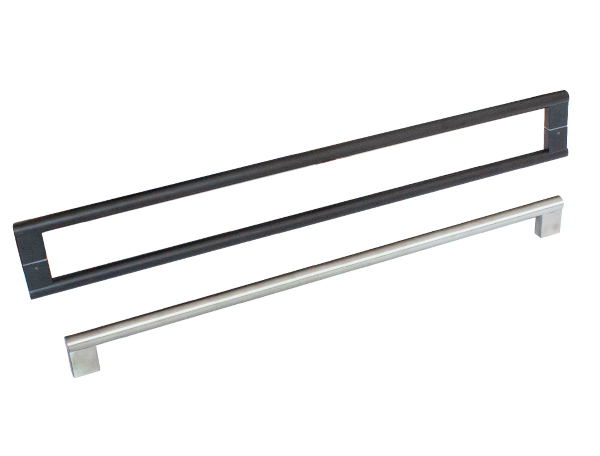

W type: surface brushed, natural color (silver white)
Type B: Surface powder coating , black matte
Type B: Surface powder coating , black matte
Available services
1. Non-standard, Length can be customized; 2. Ultrasonic cleaning and dust-free packaging 3.Laser cutting Logo
Product Name
Handle
Handle
More information
If you have more technical advice，Please call0535-6217008-801
