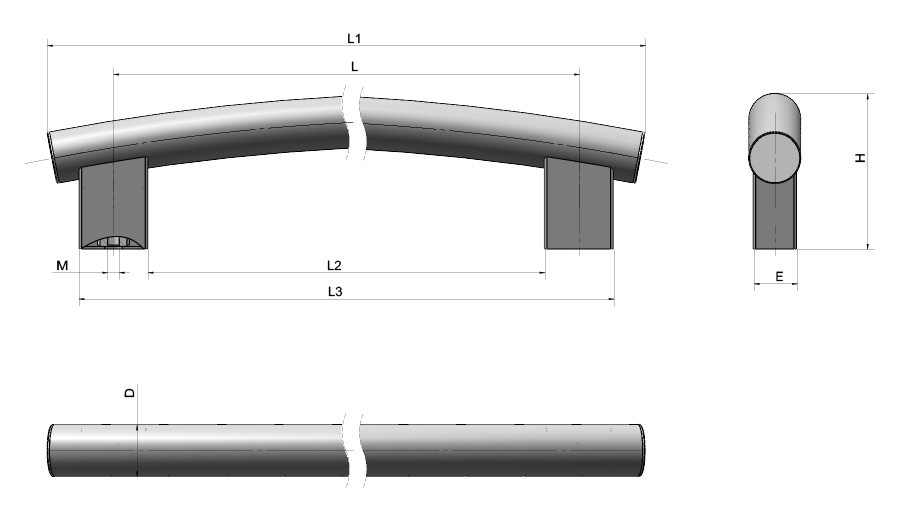

Product size diagram
Product size and properties
| Model Number | H  | L2 | L1 | Handle Diameter D | Length L | Weight（kg） | Color | Material | F | E | D1 | T | M | L3 | C | K | A | B | Tmin | R | D | W | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L121-400 | 90 | 360 | 476 | 30 | 400 | / | / | SUS304 | / | 25 | / | / | M10 | 440 | / | / | / | / | / | / | / | / |
 |
| L121-500 | 90 | 460 | 576 | 30 | 500 | / | / | SUS304 | / | 25 | / | / | M10 | 540 | / | / | / | / | / | / | / | / | |
| L121-600 | 90 | 560 | 676 | 30 | 600 | / | / | SUS304 | / | 25 | / | / | M10 | 640 | / | / | / | / | / | / | / | / |
characteristic

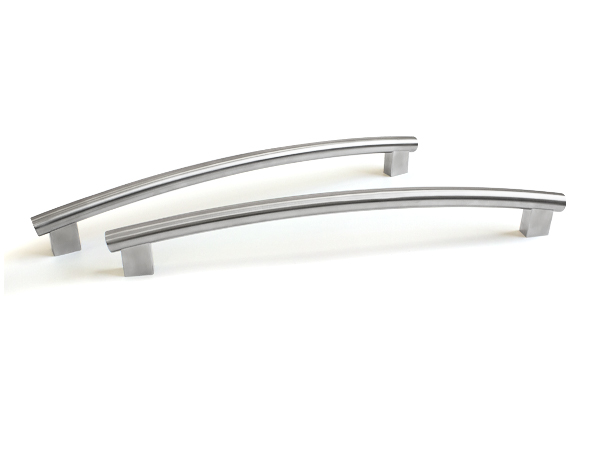

It is made of stainless steel, with good high temperature resistance and corrosion resistance.
Installation: feet with threaded holes
Installation: feet with threaded holes
