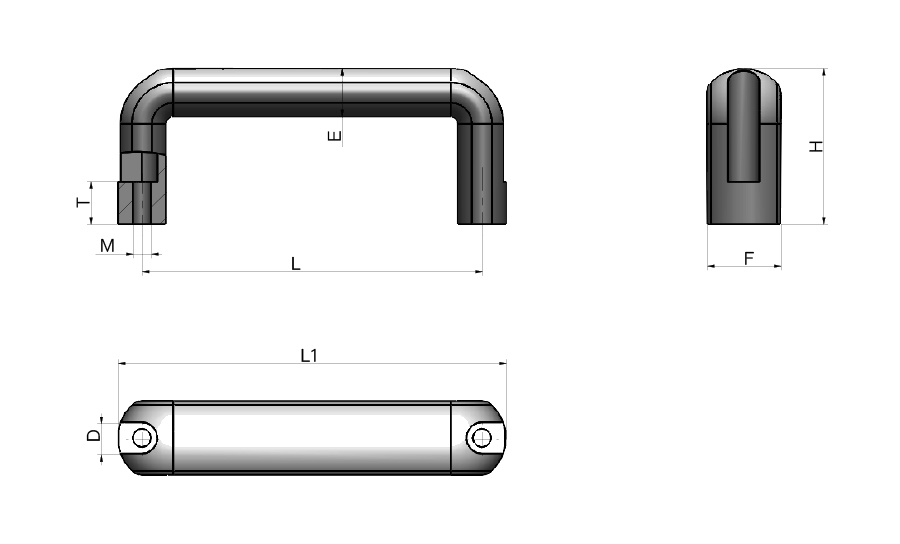

Product size diagram
Product size and properties
| Model Number | H  | L2 | L1 | Handle Diameter D | Length L | Weight（kg） | Color | Material | F | E | D1 | T | M | L3 | C | K | A | B | Tmin | R | D | W | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L78-26-100-BK | 55 | / | 117 | 11 | 100 | / | / | Aluminum Alloy | 26 | 17 | / | 15 | 6.5 | / | / | / | / | / | / | / | / | / | |
| L78-26-132-BK | 55 | / | 149 | 11 | 132 | / | / | Aluminum Alloy | 26 | 17 | / | 15 | 6.5 | / | / | / | / | / | / | / | / | / | |
| L78-26-150-BK | 55 | / | 167 | 11 | 150 | / | / | Aluminum Alloy | 26 | 17 | / | 15 | 6.5 | / | / | / | / | / | / | / | / | / | |
| L78-26-196-BK | 55 | / | 213 | 11 | 196 | / | / | Aluminum Alloy | 26 | 17 | / | 15 | 6.5 | / | / | / | / | / | / | / | / | / | |
| L78-26-100-SR | 55 | / | 117 | 11 | 100 | / | / | Aluminum Alloy | 26 | 17 | / | 15 | 6.5 | / | / | / | / | / | / | / | / | / | |
| L78-26-132-SR | 55 | / | 149 | 11 | 132 | / | / | Aluminum Alloy | 26 | 17 | / | 15 | 6.5 | / | / | / | / | / | / | / | / | / | |
| L78-26-150-SR | 55 | / | 167 | 11 | 150 | / | / | Aluminum Alloy | 26 | 17 | / | 15 | 6.5 | / | / | / | / | / | / | / | / | / | |
| L78-26-196-SR | 55 | / | 213 | 11 | 196 | / | / | Aluminum Alloy | 26 | 17 | / | 15 | 6.5 | / | / | / | / | / | / | / | / | / |
characteristic
Material: Aluminum alloy 6063
Type SR: surface sandblasted, natural color (silver white) anodized
Type BK: Surface sandblasted, black anodized
Installation: threaded blind hole
Type SR: surface sandblasted, natural color (silver white) anodized
Type BK: Surface sandblasted, black anodized
Installation: threaded blind hole
Available services
1. Non-standard, Length can be customized; 2. Ultrasonic cleaning and dust-free packaging 3.Laser cutting Logo
Product Name
Oval Handle
Oval Handle
