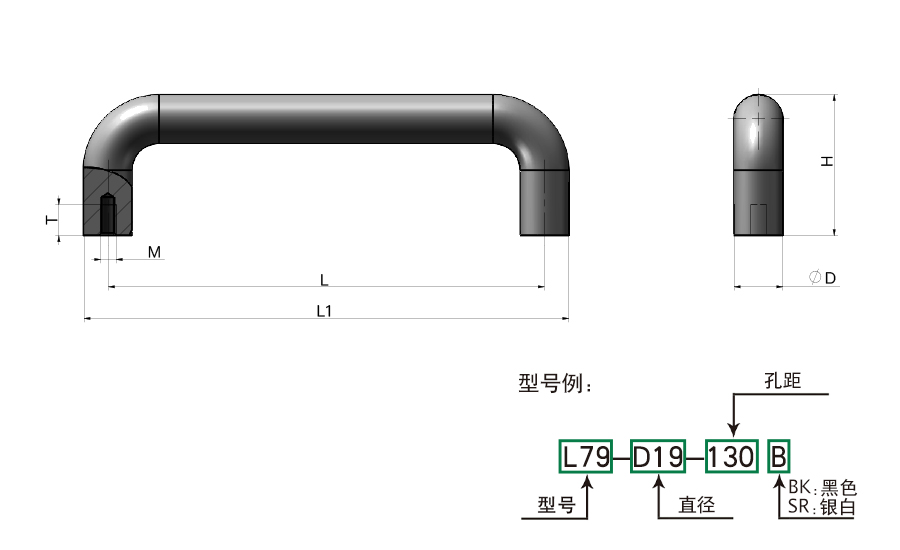

Product size diagram
Product size and properties
| Model Number | H  | L2 | L1 | Handle Diameter D | Length L | Weight（kg） | Color | Material | F | E | D1 | T | M | L3 | C | K | A | B | Tmin | R | D | W | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L79-D19-230-BK | 55 | / | 249 | 10 | 230 | / | / | Aluminum Alloy | / | / | / | 12 | M6 | / | / | / | / | / | / | / | / | / | |
| L79-D19-150-BK | 55 | / | 169 | 19 | 150 | / | / | Aluminum Alloy | / | / | / | 12 | M6 | / | / | / | / | / | / | / | / | / | |
| L79-D19-203-BK | 55 | / | 222 | 19 | 203 | / | / | Aluminum Alloy | / | / | / | 12 | M6 | / | / | / | / | / | / | / | / | / |
 |
| L79-D19-230-SR | 55 | / | 249 | 19 | 230 | / | / | Aluminum Alloy | / | / | / | 12 | M6 | / | / | / | / | / | / | / | / | / | |
| L79-D19-150-SR | 55 | / | 169 | 19 | 150 | / | / | Aluminum Alloy | / | / | / | 12 | M6 | / | / | / | / | / | / | / | / | / | |
| L79-D19-203-SR | 55 | / | 222 | 19 | 203 | / | / | Aluminum Alloy | / | / | / | 12 | M6 | / | / | / | / | / | / | / | / | / |
characteristic
Material: Aluminum alloy 6063
Type SR: surface sandblasted, natural color (silver white) anodized
Type BK: Surface sandblasted, black anodized
Installation: threaded blind hole
Type SR: surface sandblasted, natural color (silver white) anodized
Type BK: Surface sandblasted, black anodized
Installation: threaded blind hole
Available services
1. Non-standard, Length can be customized; 2. Ultrasonic cleaning and dust-free packaging 3.Laser cutting Logo
Product Name
Round Handle
Round Handle
