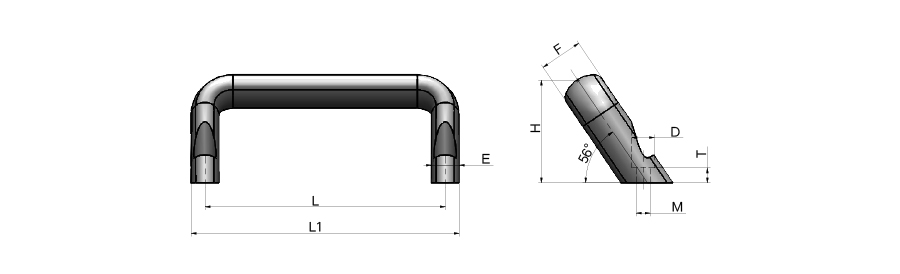

Product size diagram
Product size and properties
| Model Number | H  | L2 | L1 | Handle Diameter D | Length L | Weight（kg） | Color | Material | F | E | D1 | T | M | L3 | C | K | A | B | Tmin | R | D | W | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L76-20-112SR | 48 | / | 125 | 10.5 | 112 | / | / | Aluminum Alloy | 20 | 13 | / | 7 | 6.5 | / | / | / | / | / | / | / | / | / |
 |
| L76-20-112BK | 48 | / | 125 | 10.5 | 112 | / | / | Aluminum Alloy | 20 | 13 | / | 7 | 6.5 | / | / | / | / | / | / | / | / | / |
|
characteristic
Material: Aluminum alloy 6063
Type SR: surface sandblasted, natural color (silver white) anodized
Type BK: Surface sandblasted, black anodized
Installation: Countersunk through-hole
Type SR: surface sandblasted, natural color (silver white) anodized
Type BK: Surface sandblasted, black anodized
Installation: Countersunk through-hole
Available services
1. Non-standard, Length can be customized; 2. Ultrasonic cleaning and dust-free packaging 3.Laser cutting Logo
Product Name
Inclined Handle
Inclined Handle
