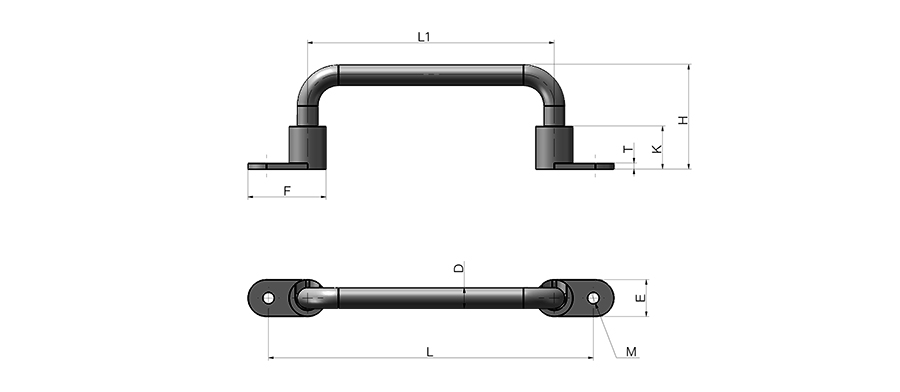

Product size diagram
Product size and properties
| Model Number | H  | L2 | L1 | Handle Diameter D | Length L | Weight（kg） | Color | Material | F | E | D1 | T | M | L3 | C | K | A | B | Tmin | R | D | W | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L80B-D10-138 | 46 | / | 100 | 10 | 138 | / | / | SUS304 | 38 | 18 | / | 3 | 5.5 | / | / | 21 | / | / | / | / | / | / |
 |
| L80B-D10-158 | 46 | / | 120 | 10 | 158 | / | / | SUS304 | 38 | 18 | / | 3 | 5.5 | / | / | 21 | / | / | / | / | / | / |
|
| L80B-D10-180 | 46 | / | 142 | 10 | 180 | / | / | SUS304 | 38 | 18 | / | 3 | 5.5 | / | / | 21 | / | / | / | / | / | / |
|
| L80B-D10-218 | 46 | / | 180 | 10 | 218 | / | / | SUS304 | 38 | 18 | / | 3 | 5.5 | / | / | 21 | / | / | / | / | / | / |
|
characteristic
Folding design, reduce surface protrusion
Both ends of opening and closing can be fixed.
Available services
1.Non-standard, Length can be customized; 2. Ultrasonic cleaning and dust-free packaging 3.Laser cutting Logo
Product Name
Folding Handle
Folding Handle
