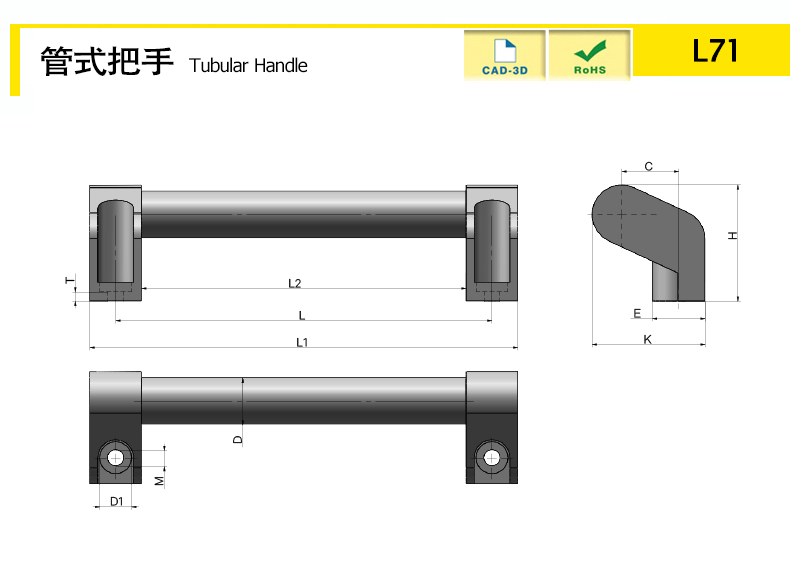

Product size diagram
Product size and properties
| Model Number | H  | L2 | L1 | Handle Diameter D | Length L | Weight（kg） | Color | Material | F | E | D1 | T | M | L3 | C | K | A | B | Tmin | R | D | W | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L71-D25-200-BK | 62 | 173 | 228 | 25 | 200 | / | / | Aluminum Alloy | / | 28 | 17 | 5 | 8.5 | / | / | 60 | / | / | / | / | / | / |
 |
| L71-D25-200-SR | 62 | 173 | 228 | 25 | 200 | / | / | Aluminum Alloy | / | 28 | 17 | 5 | 8.5 | / | / | 60 | / | / | / | / | / | / | |
| L71-D25-300-BK | 62 | 273 | 328 | 25 | 300 | / | / | Aluminum Alloy | / | 28 | 17 | 5 | 8.5 | / | / | 60 | / | / | / | / | / | / | |
| L71-D25-300-SR | 62 | 273 | 328 | 25 | 300 | / | / | Aluminum Alloy | / | 28 | 17 | 5 | 8.5 | / | / | 60 | / | / | / | / | / | / |
characteristic
Tubular handle
Foot: glass fiber reinforced polyamide (PA)
Available services
1. Non-standard, Length can be customized; 2. Ultrasonic cleaning and dust-free packaging 3.Laser cutting Logo
Product Name
Tubular Handle
Tubular Handle
