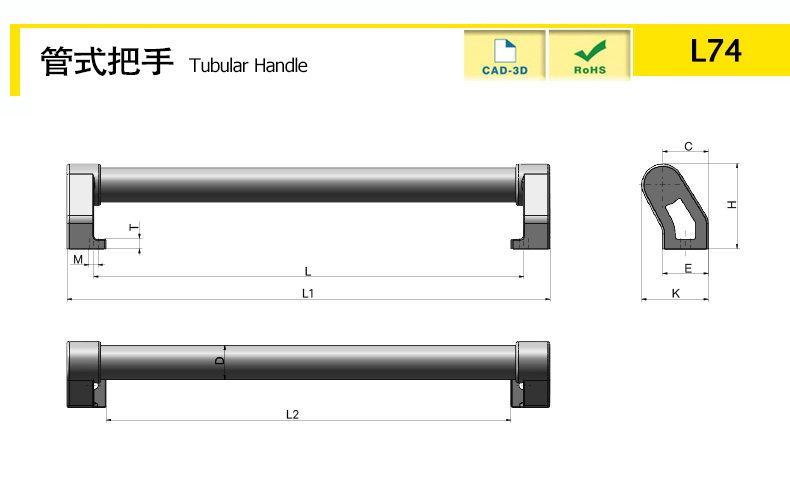

Product size diagram
Product size and properties
| Model Number | H  | L2 | L1 | Handle Diameter D | Length L | Weight（kg） | Color | Material | F | E | D1 | T | M | L3 | C | K | A | B | Tmin | R | D | W | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L74-D32-300-BK | 80 | 276 | 350 | 32 | 300 | / | / | Aluminum Alloy | / | 43 | / | 10 | 8.5 | / | / | 62 | / | / | / | / | / | / |
 |
| L74-D32-300-SR | 80 | 276 | 350 | 32 | 300 | / | / | Aluminum Alloy | / | 43 | / | 10 | 8.5 | / | / | 62 | / | / | / | / | / | / | |
| L74B-D32-300 | 80 | 276 | 350 | 32 | 300 | / | / | Aluminum Alloy | / | 43 | / | 10 | 8.5 | / | / | 62 | / | / | / | / | / | / | |
| L74-D32-400-BK | 80 | 376 | 450 | 32 | 400 | / | / | Aluminum Alloy | / | 43 | / | 10 | 8.5 | / | / | 62 | / | / | / | / | / | / | |
| L74-D32-400-SR | 80 | 376 | 450 | 32 | 400 | / | / | Aluminum Alloy | / | 43 | / | 10 | 8.5 | / | / | 62 | / | / | / | / | / | / | |
| L74B-D32-400 | 80 | 376 | 450 | 32 | 400 | / | / | Aluminum Alloy | / | 43 | / | 10 | 8.5 | / | / | 62 | / | / | / | / | / | / |
characteristic
Tubular handle
Foot: glass fiber reinforced polyamide (PA)
Available services
Product Name
Tubular Handle
Tubular Handle
More information
If you have more technical advice，Please call0535-6217008-801
