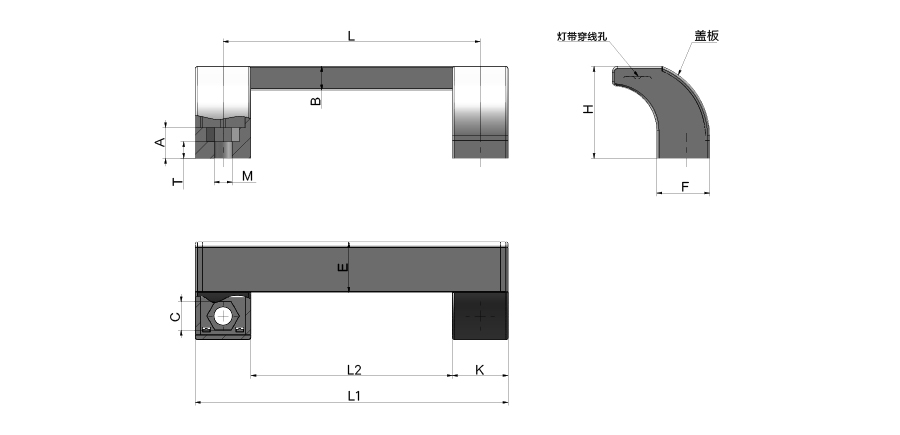

Product size diagram
Product size and properties
| Model Number | H  | L2 | L1 | Handle Diameter D | Length L | Weight（kg） | Color | Material | F | E | D1 | T | M | L3 | C | K | A | B | Tmin | R | D | W | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L86-23-120-YL | 43 | 94 | 146 | / | 120 | 0.09 | / | Aluminum Alloy | 25 | 23 | / | 8 | 8.5 | / | 13.2 | 26 | 14 | 11 | / | / | / | / | |
| L86D-23-120-YL | 43 | 94 | 146 | / | 120 | 0.09 | / | Aluminum Alloy | 25 | 23 | / | 8 | 8.5 | / | 13.2 | 26 | 14 | 11 | / | / | / | / | |
| L86-23-150-YL | 43 | 124 | 176 | / | 150 | 0.105 | / | Aluminum Alloy | 25 | 23 | / | 8 | 8.5 | / | 13.2 | 26 | 14 | 11 | / | / | / | / | |
| L86D-23-150-YL | 43 | 124 | 176 | / | 150 | 0.105 | / | Aluminum Alloy | 25 | 23 | / | 8 | 8.5 | / | 13.2 | 26 | 14 | 11 | / | / | / | / | |
| L86-23-180-YL | 43 | 154 | 206 | / | 180 | 0.12 | / | Aluminum Alloy | 25 | 23 | / | 8 | 8.5 | / | 13.2 | 26 | 14 | 11 | / | / | / | / | |
| L86D-23-180-YL | 43 | 154 | 206 | / | 180 | 0.12 | / | Aluminum Alloy | 25 | 23 | / | 8 | 8.5 | / | 13.2 | 26 | 14 | 11 | / | / | / | / | |
| L86-23-120-WH | 43 | 94 | 146 | / | 120 | 0.09 | / | Aluminum Alloy | 25 | 23 | / | 8 | 8.5 | / | 13.2 | 26 | 14 | 11 | / | / | / | / |
 |
| L86D-23-120-WH | 43 | 94 | 146 | / | 120 | 0.09 | / | Aluminum Alloy | 25 | 23 | / | 8 | 8.5 | / | 13.2 | 26 | 14 | 11 | / | / | / | / | |
| L86-23-150-WH | 43 | 124 | 176 | / | 150 | 0.105 | / | Aluminum Alloy | 25 | 23 | / | 8 | 8.5 | / | 13.2 | 26 | 14 | 11 | / | / | / | / | |
| L86D-23-150-WH | 43 | 124 | 176 | / | 150 | 0.105 | / | Aluminum Alloy | 25 | 23 | / | 8 | 8.5 | / | 13.2 | 26 | 14 | 11 | / | / | / | / | |
| L86-23-180-WH | 43 | 154 | 206 | / | 180 | 0.12 | / | Aluminum Alloy | 25 | 23 | / | 8 | 8.5 | / | 13.2 | 26 | 14 | 11 | / | / | / | / | |
| L86D-23-180-WH | 43 | 154 | 206 | / | 180 | 0.12 | / | Aluminum Alloy | 25 | 23 | / | 8 | 8.5 | / | 13.2 | 26 | 14 | 11 | / | / | / | / | |
| L86-23-120-OG | 43 | 94 | 146 | / | 120 | 0.09 | / | Aluminum Alloy | 25 | 23 | / | 8 | 8.5 | / | 13.2 | 26 | 14 | 11 | / | / | / | / | |
| L86D-23-120-OG | 43 | 94 | 146 | / | 120 | 0.09 | / | Aluminum Alloy | 25 | 23 | / | 8 | 8.5 | / | 13.2 | 26 | 14 | 11 | / | / | / | / | |
| L86-23-150-OG | 43 | 124 | 176 | / | 150 | 0.105 | / | Aluminum Alloy | 25 | 23 | / | 8 | 8.5 | / | 13.2 | 26 | 14 | 11 | / | / | / | / | |
| L86D-23-150-OG | 43 | 124 | 176 | / | 150 | 0.105 | / | Aluminum Alloy | 25 | 23 | / | 8 | 8.5 | / | 13.2 | 26 | 14 | 11 | / | / | / | / | |
| L86-23-180-OG | 43 | 154 | 206 | / | 180 | 0.12 | / | Aluminum Alloy | 25 | 23 | / | 8 | 8.5 | / | 13.2 | 26 | 14 | 11 | / | / | / | / | |
| L86D-23-180-OG | 43 | 154 | 206 | / | 180 | 0.12 | / | Aluminum Alloy | 25 | 23 | / | 8 | 8.5 | / | 13.2 | 26 | 14 | 11 | / | / | / | / |
characteristic
Handle aluminum alloy, black anodized
Foot ABS, black
Cover ABS, yellow, white，orange
Foot ABS, black
Cover ABS, yellow, white，orange
With threading holes, hidden light strips can be installed.
L86D factory pre-installed light strip.
Installation: Both front and back mounting are ok
Available services
1. Non-standard, Length can be customized; 2. Ultrasonic cleaning and dust-free packaging 3.Laser cutting Logo
