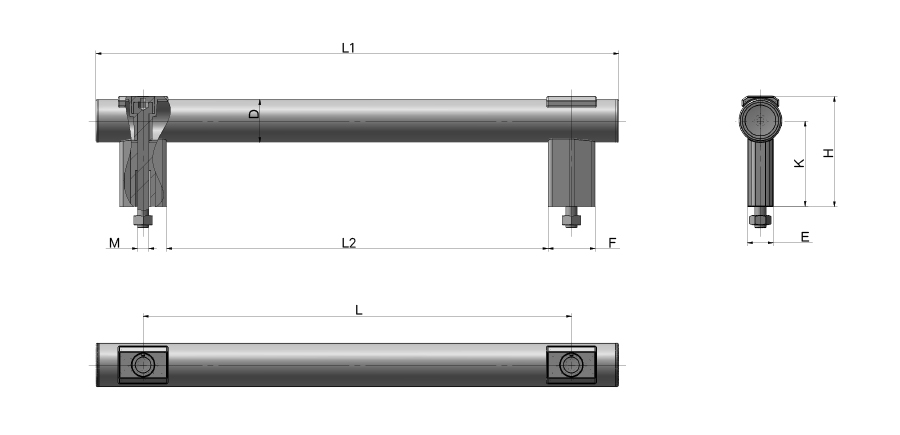

Product size diagram
Product size and properties
| Model Number | H  | L2 | L1 | Handle Diameter D | Length L | Weight（kg） | Color | Material | F | E | D1 | T | M | L3 | C | K | A | B | Tmin | R | D | W | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L117-D30-300-B-BK | 77 | 267 | 366 | 30 | 300 | 0.28 | / | Aluminum Alloy | 33 | 18 | / | / | M8 | / | / | 60 | / | / | / | / | / | / | |
| L117-D30-300-S-BK | 77 | 267 | 366 | 30 | 300 | 0.28 | / | Aluminum Alloy | 33 | 18 | / | / | M8 | / | / | 60 | / | / | / | / | / | / | |
| L117-D30-400-B-BK | 77 | 367 | 466 | 30 | 400 | 0.315 | / | Aluminum Alloy | 33 | 18 | / | / | M8 | / | / | 60 | / | / | / | / | / | / | |
| L117-D30-400-S-BK | 77 | 367 | 466 | 30 | 400 | 0.315 | / | Aluminum Alloy | 33 | 18 | / | / | M8 | / | / | 60 | / | / | / | / | / | / | |
| L117-D30-500-B-BK | 77 | 467 | 566 | 30 | 500 | 0.35 | / | Aluminum Alloy | 33 | 18 | / | / | M8 | / | / | 60 | / | / | / | / | / | / | |
| L117-D30-500-S-BK | 77 | 467 | 566 | 30 | 500 | 0.35 | / | Aluminum Alloy | 33 | 18 | / | / | M8 | / | / | 60 | / | / | / | / | / | / | |
| L117-D30-300-B-BU | 77 | 267 | 366 | 30 | 300 | 0.28 | / | Aluminum Alloy | 33 | 18 | / | / | M8 | / | / | 60 | / | / | / | / | / | / | |
| L117-D30-300-S-BU | 77 | 267 | 366 | 30 | 300 | 0.28 | / | Aluminum Alloy | 33 | 18 | / | / | M8 | / | / | 60 | / | / | / | / | / | / | |
| L117-D30-400-B-BU | 77 | 367 | 466 | 30 | 400 | 0.315 | / | Aluminum Alloy | 33 | 18 | / | / | M8 | / | / | 60 | / | / | / | / | / | / | |
| L117-D30-400-S-BU | 77 | 367 | 466 | 30 | 400 | 0.315 | / | Aluminum Alloy | 33 | 18 | / | / | M8 | / | / | 60 | / | / | / | / | / | / | |
| L117-D30-500-B-BU | 77 | 467 | 566 | 30 | 500 | 0.35 | / | Aluminum Alloy | 33 | 18 | / | / | M8 | / | / | 60 | / | / | / | / | / | / | |
| L117-D30-500-S-BU | 77 | 467 | 566 | 30 | 500 | 0.35 | / | Aluminum Alloy | 33 | 18 | / | / | M8 | / | / | 60 | / | / | / | / | / | / | |
| L117-D30-300-B-YL | 77 | 267 | 366 | 30 | 300 | 0.28 | / | Aluminum Alloy | 33 | 18 | / | / | M8 | / | / | 60 | / | / | / | / | / | / | |
| L117-D30-300-S-YL | 77 | 267 | 366 | 30 | 300 | 0.28 | / | Aluminum Alloy | 33 | 18 | / | / | M8 | / | / | 60 | / | / | / | / | / | / | |
| L117-D30-400-B-YL | 77 | 367 | 466 | 30 | 400 | 0.315 | / | Aluminum Alloy | 33 | 18 | / | / | M8 | / | / | 60 | / | / | / | / | / | / | |
| L117-D30-400-S-YL | 77 | 367 | 466 | 30 | 400 | 0.315 | / | Aluminum Alloy | 33 | 18 | / | / | M8 | / | / | 60 | / | / | / | / | / | / | |
| L117-D30-500-B-YL | 77 | 467 | 566 | 30 | 500 | 0.35 | / | Aluminum Alloy | 33 | 18 | / | / | M8 | / | / | 60 | / | / | / | / | / | / | |
| L117-D30-500-S-YL | 77 | 467 | 566 | 30 | 500 | 0.35 | / | Aluminum Alloy | 33 | 18 | / | / | M8 | / | / | 60 | / | / | / | / | / | / |
characteristic
Tubular handle
Foot: glass fiber reinforced polyamide (PA)
Cover plate: polypropylene (polymer) PP
Installation: Both front and back mounting are ok
Available services
1. Non-standard, Length can be customized; 2. Ultrasonic cleaning and dust-free packaging 3.Laser cutting Logo
Product Name
U-shaped Handle
U-shaped Handle
More information
If you have more technical advice，Please call0535-6217008-801
