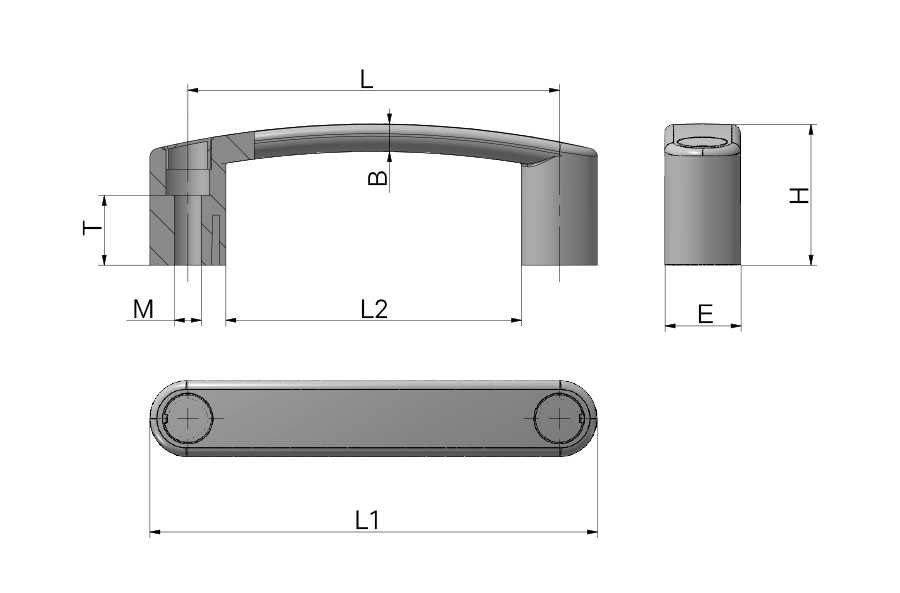

Product size diagram
Product size and properties
| Model Number | H  | L2 | L1 | Handle Diameter D | Length L | Weight（kg） | Color | Material | F | E | D1 | T | M | L3 | C | K | A | B | Tmin | R | D | W | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L88-90-BK | 34 | 70 | 107 | 18 | 90 | / | / | PA | / | / | / | 16 | 6.5 | / | / | / | / | 6 | / | / | / | / | |
| L88-90-BU | 34 | 70 | 107 | 18 | 90 | / | / | PA | / | / | / | 16 | 6.5 | / | / | / | / | 6 | / | / | / | / |
 |
| L88-120-BK | 40 | 96 | 145 | 25 | 120 | / | / | PA | / | / | / | 16 | 8.5 | / | / | / | / | 9 | / | / | / | / | |
| L88-120-BU | 40 | 96 | 145 | 25 | 120 | / | / | PA | / | / | / | 16 | 8.5 | / | / | / | / | 9 | / | / | / | / |
characteristic
Installation: The support legs have through-holes for M6/M8 hex screws, which can be installed on the front or back
Curved handle design, fashionable and beautiful, comfortable to grip, firm and stable
Curved handle design, fashionable and beautiful, comfortable to grip, firm and stable
Available services
1. Ultrasonic cleaning and dust-free packaging 2.Laser cutting Logo
Product Name
Nylon Handle
Nylon Handle
