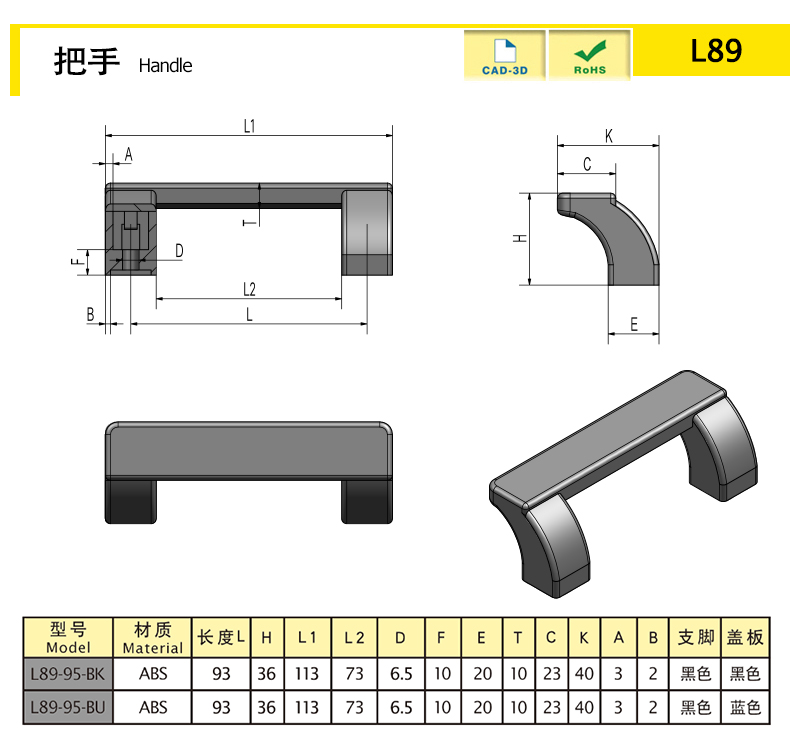

Product size diagram
Product size and properties
| Model Number | H  | L2 | L1 | Handle Diameter D | Length L | Weight（kg） | Color | Material | F | E | D1 | T | M | L3 | C | K | A | B | Tmin | R | D | W | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L89-95-BK | 36 | 73 | 113 | 6.5 | 95 | / | / | ABS | 10 | 20 | / | 10 | / | / | / | 40 | 3 | 2 | / | / | / | / | |
| L89-95-BU | 36 | 73 | 113 | 6.5 | 95 | / | / | ABS | 10 | 20 | / | 10 | / | / | / | 40 | 3 | 2 | / | / | / | / |
characteristic
Installation: Both front and back mounting are ok.
Available services
1. Ultrasonic cleaning and dust-free packaging 2.Laser cutting Logo
Product Name
Handle
Handle
More information
If you have more technical advice，Please call0535-6217008-801
