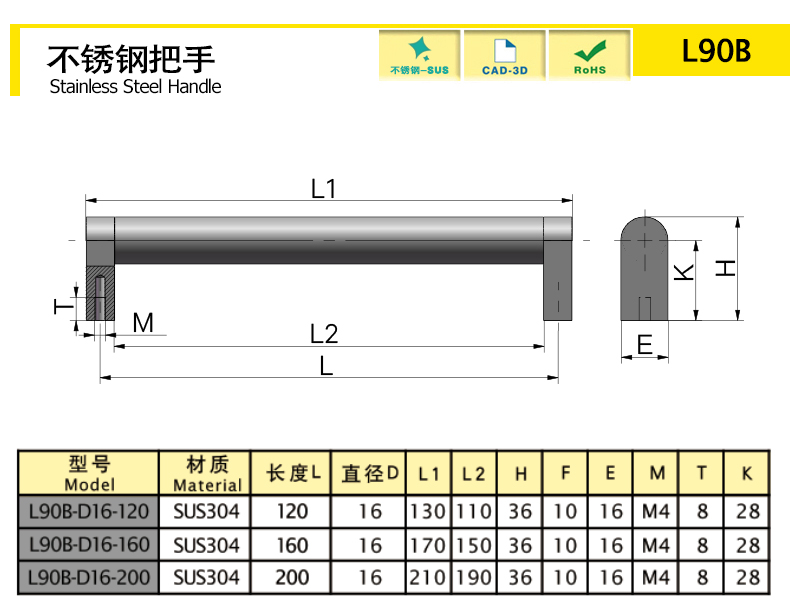

Product size diagram
Product size and properties
| Model Number | H  | L2 | L1 | Handle Diameter D | Length L | Weight（kg） | Color | Material | F | E | D1 | T | M | L3 | C | K | A | B | Tmin | R | D | W | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L90B-D16-120 | 36 | 110 | 130 | 16 | 120 | / | / | SUS304 | 10 | 16 | / | 8 | M4 | / | / | 28 | / | / | / | / | / | / | |
| L90B-D16-160 | 36 | 150 | 170 | 16 | 160 | / | / | SUS304 | 10 | 16 | / | 8 | M4 | / | / | 28 | / | / | / | / | / | / |
 |
| L90B-D16-200 | 36 | 190 | 210 | 16 | 200 | / | / | SUS304 | 10 | 16 | / | 8 | M4 | / | / | 28 | / | / | / | / | / | / |
characteristic
Tubular handle: Polished surface, fine texture, comfortable grip
Body: SUS304
Foot: Zinc alloy chrome plated
Installation: Foot with threaded blind holes
Body: SUS304
Foot: Zinc alloy chrome plated
Installation: Foot with threaded blind holes
Available services
1. Non-standard, Length can be customized; 2. Ultrasonic cleaning and dust-free packaging 3.Laser cutting Logo
Product Name
Stainless Steel Handle
Stainless Steel Handle
More information
If you have more technical advice，Please call0535-6217008-801
