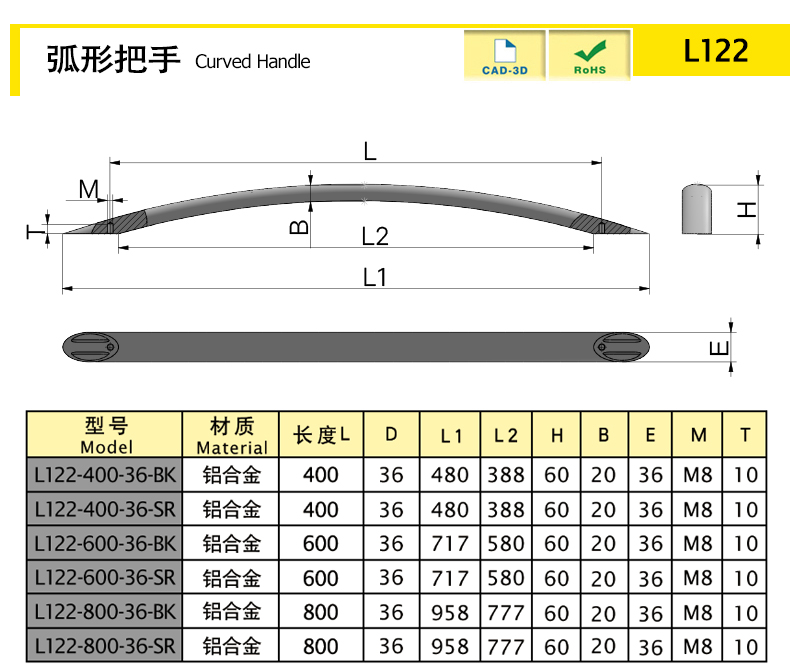

Product size diagram
Product size and properties
| Model Number | H  | L2 | L1 | Handle Diameter D | Length L | Weight（kg） | Color | Material | F | E | D1 | T | M | L3 | C | K | A | B | Tmin | R | D | W | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L122-400-36-BK | 60 | 388 | 480 | 36 | 400 | / | / | Aluminum Alloy | / | 36 | / | 10 | M8 | / | / | / | / | 20 | / | / | / | / | |
| L122-400-36-SR | 60 | 388 | 480 | 36 | 400 | / | / | Aluminum Alloy | / | 36 | / | 10 | M8 | / | / | / | / | 20 | / | / | / | / | |
| L122-600-36-BK | 60 | 580 | 717 | 36 | 600 | / | / | Aluminum Alloy | / | 36 | / | 10 | M8 | / | / | / | / | 20 | / | / | / | / |
 |
| L122-600-36-SR | 60 | 580 | 717 | 36 | 600 | / | / | Aluminum Alloy | / | 36 | / | 10 | M8 | / | / | / | / | 20 | / | / | / | / |
|
| L122-800-36-BK | 60 | 777 | 958 | 36 | 800 | / | / | Aluminum Alloy | / | 36 | / | 10 | M8 | / | / | / | / | 20 | / | / | / | / | |
| L122-800-36-SR | 60 | 777 | 958 | 36 | 800 | / | / | Aluminum Alloy | / | 36 | / | 10 | M8 | / | / | / | / | 20 | / | / | / | / |
characteristic
The streamlined design of the curved handle makes it easier to grip
Installation: Front installation
Installation: Front installation
Available services
1. Non-standard, Length can be customized; 2. Ultrasonic cleaning and dust-free packaging
Product Name
Curved Handle
Curved Handle
More information
If you have more technical advice，Please call0535-6217008-801
