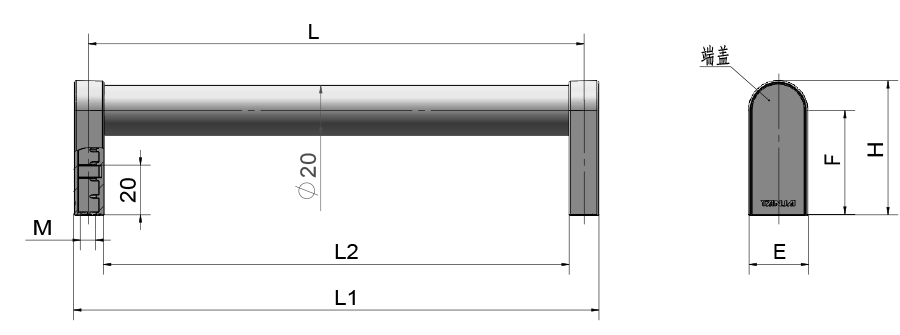

Product size diagram
Product size and properties
| Model Number | H  | L2 | L1 | Handle Diameter D | Length L | Weight（kg） | Color | Material | F | E | D1 | T | M | L3 | C | K | A | B | Tmin | R | D | W | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L11-180-D20-W | 54 | 168 | 192 | 20 | 180 | 0.0712 | / | Aluminum Alloy | 42 | 24 | / | 14 | M6 | / | / | / | / | / | / | / | / | / | |
| L11-200-D20-W | 54 | 188 | 212 | 20 | 200 | / | / | Aluminum Alloy | 42 | 24 | / | 14 | M6 | / | / | / | / | / | / | / | / | / | |
| L11-250-D20-W | 54 | 238 | 262 | 20 | 250 | / | / | Aluminum Alloy | 42 | 24 | / | 14 | M6 | / | / | / | / | / | / | / | / | / | |
| L11-300-D20-W | 54 | 288 | 312 | 20 | 300 | / | / | Aluminum Alloy | 42 | 24 | / | 14 | M6 | / | / | / | / | / | / | / | / | / | |
| L11-350-D20-W | 54 | 338 | 362 | 20 | 350 | / | / | Aluminum Alloy | 42 | 24 | / | 14 | M6 | / | / | / | / | / | / | / | / | / |
 |
| L11-400-D20-W | 54 | 388 | 412 | 20 | 400 | / | / | Aluminum Alloy | 42 | 24 | / | 14 | M6 | / | / | / | / | / | / | / | / | / | |
| L11-180-D20-B | 54 | 168 | 192 | 20 | 180 | / | / | Aluminum Alloy | 42 | 24 | / | 14 | M6 | / | / | / | / | / | / | / | / | / |
|
| L11-200-D20-B | 54 | 188 | 212 | 20 | 200 | / | / | Aluminum Alloy | 42 | 24 | / | 14 | M6 | / | / | / | / | / | / | / | / | / | |
| L11-250-D20-B | 54 | 238 | 262 | 20 | 250 | / | / | Aluminum Alloy | 42 | 24 | / | 14 | M6 | / | / | / | / | / | / | / | / | / | |
| L11-300-D20-B | 54 | 288 | 312 | 20 | 300 | / | / | Aluminum Alloy | 42 | 24 | / | 14 | M6 | / | / | / | / | / | / | / | / | / | |
| L11-350-D20-B | 54 | 338 | 362 | 20 | 350 | / | / | Aluminum Alloy | 42 | 24 | / | 14 | M6 | / | / | / | / | / | / | / | / | / |
|
| L11-400-D20-B | 54 | 388 | 412 | 20 | 400 | / | / | Aluminum Alloy | 42 | 24 | / | 14 | M6 | / | / | / | / | / | / | / | / | / | |
| L11-180-D20-S | 54 | 168 | 192 | 20 | 180 | / | / | Aluminum Alloy | 42 | 24 | / | 14 | M6 | / | / | / | / | / | / | / | / | / | |
| L11-200-D20-S | 54 | 188 | 212 | 20 | 200 | / | / | Aluminum Alloy | 42 | 24 | / | 14 | M6 | / | / | / | / | / | / | / | / | / | |
| L11-250-D20-S | 54 | 238 | 262 | 20 | 250 | / | / | Aluminum Alloy | 42 | 24 | / | 14 | M6 | / | / | / | / | / | / | / | / | / | |
| L11-300-D20-S | 54 | 288 | 312 | 20 | 300 | / | / | Aluminum Alloy | 42 | 24 | / | 14 | M6 | / | / | / | / | / | / | / | / | / | |
| L11-350-D20-S | 54 | 338 | 362 | 20 | 350 | / | / | Aluminum Alloy | 42 | 24 | / | 14 | M6 | / | / | / | / | / | / | / | / | / |
|
| L11-400-D20-S | 54 | 388 | 412 | 20 | 400 | / | / | Aluminum Alloy | 42 | 24 | / | 14 | M6 | / | / | / | / | / | / | / | / | / |
characteristic

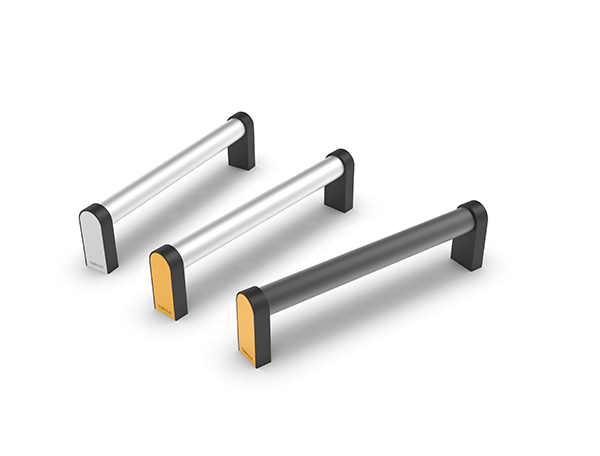

tubular handle
W type: tube body anodized, silver, matte finish; Foot silver , matte finish
Type B: black body, black foot, matte finish
Type S: tube body anodized, silver, matte finish; Black foot, matte finish
Tube end cover: polyamide (PA)
Installation: pin with threaded blind hole
Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging 4.Laser cutting Logo
Product Name
Handle
Handle
More information
If you have more technical advice，Please call0535-6217008-801
