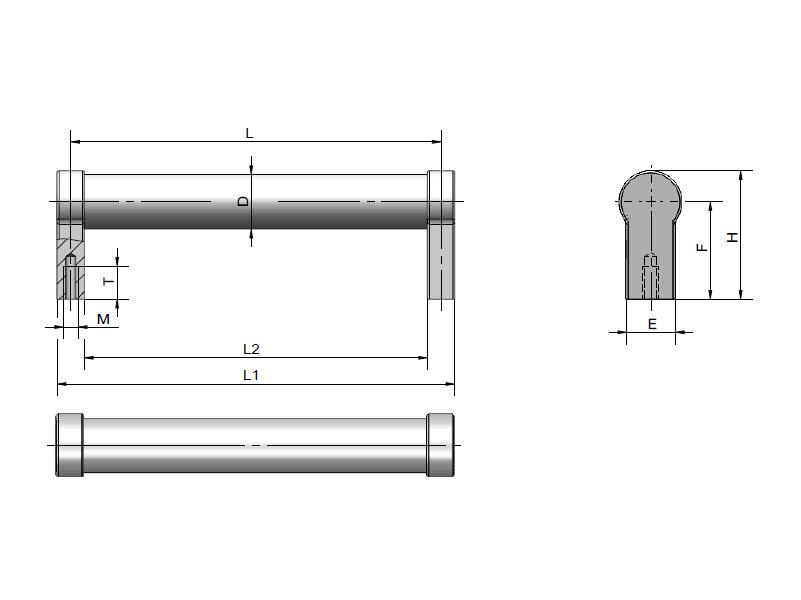

Product size diagram
Product size and properties
| Model Number | H  | L2 | L1 | Handle Diameter D | Length L | Weight（kg） | Color | Material | F | E | D1 | T | M | L3 | C | K | A | B | Tmin | R | D | W | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L14-200-D28 | 66 | 186 | 214 | 28 | 200 | / | / | SUS304 | 50 | 25 | / | 16 | M8 | / | / | / | / | / | / | / | / | / | |
| L14-250-D28 | 66 | 236 | 264 | 28 | 250 | / | / | SUS304 | 50 | 25 | / | 16 | M8 | / | / | / | / | / | / | / | / | / |
 |
| L14-300-D28 | 66 | 286 | 314 | 28 | 300 | / | / | SUS304 | 50 | 25 | / | 16 | M8 | / | / | / | / | / | / | / | / | / | |
| L14-400-D28 | 66 | 386 | 414 | 28 | 400 | / | / | SUS304 | 50 | 25 | / | 16 | M8 | / | / | / | / | / | / | / | / | / | |
| L14-500-D28 | 66 | 486 | 514 | 28 | 500 | / | / | SUS304 | 50 | 25 | / | 16 | M8 | / | / | / | / | / | / | / | / | / | |
| L14-600-D28 | 66 | 586 | 614 | 28 | 600 | / | / | SUS304 | 50 | 25 | / | 16 | M8 | / | / | / | / | / | / | / | / | / |
characteristic
tubular handle
The pipe body and supporting feet are made of stainless steel, sandblasted, electrolytic treated and polished
handle is resistant to corrosion
Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging 4.Laser cutting Logo
Product Name
Handle
Handle
More information
If you have more technical advice，Please call0535-6217008-801
