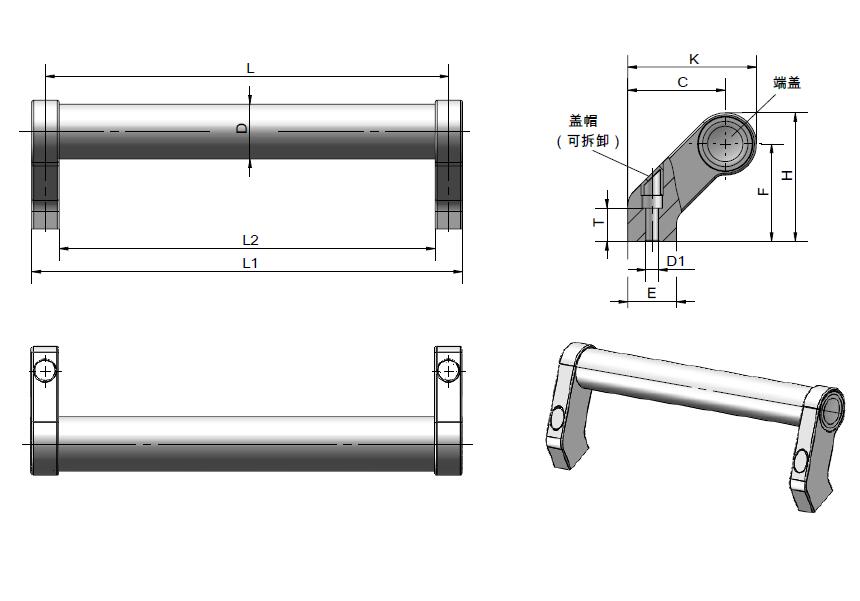

Product size diagram
Product size and properties
| Model Number | H  | L2 | L1 | Handle Diameter D | Length L | Weight（kg） | Color | Material | F | E | D1 | T | M | L3 | C | K | A | B | Tmin | R | D | W | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L15-200-D28-W | 76 | 186 | 214 | 30 | 200 | / | / | Aluminum Alloy | 60 | 25 | 6.5 | 10 | / | / | / | / | / | / | / | / | / | / | |
| L15-200-D28-B | 76 | 186 | 214 | 30 | 200 | / | / | Aluminum Alloy | 60 | 25 | 6.5 | 10 | / | / | / | / | / | / | / | / | / | / | |
| L15-200-D28-S | 76 | 186 | 214 | 30 | 200 | / | / | Aluminum Alloy | 60 | 25 | 6.5 | 10 | / | / | / | / | / | / | / | / | / | / | |
| L15-250-D28-W | 76 | 236 | 264 | 30 | 250 | / | / | Aluminum Alloy | 60 | 25 | 6.5 | 10 | / | / | / | / | / | / | / | / | / | / | |
| L15-250-D28-B | 76 | 236 | 264 | 30 | 250 | / | / | Aluminum Alloy | 60 | 25 | 6.5 | 10 | / | / | / | / | / | / | / | / | / | / | |
| L15-250-D28-S | 76 | 236 | 264 | 30 | 250 | / | / | Aluminum Alloy | 60 | 25 | 6.5 | 10 | / | / | / | / | / | / | / | / | / | / | |
| L15-300-D28-W | 76 | 286 | 314 | 30 | 300 | / | / | Aluminum Alloy | 60 | 25 | 6.5 | 10 | / | / | / | / | / | / | / | / | / | / |
 |
| L15-300-D28-B | 76 | 286 | 314 | 30 | 300 | / | / | Aluminum Alloy | 60 | 25 | 6.5 | 10 | / | / | / | / | / | / | / | / | / | / |
|
| L15-300-D28-S | 76 | 286 | 314 | 30 | 300 | / | / | Aluminum Alloy | 60 | 25 | 6.5 | 10 | / | / | / | / | / | / | / | / | / | / |
|
| L15-400-D28-W | 76 | 386 | 414 | 30 | 400 | / | / | Aluminum Alloy | 60 | 25 | 6.5 | 10 | / | / | / | / | / | / | / | / | / | / | |
| L15-400-D28-B | 76 | 386 | 141 | 30 | 400 | / | / | Aluminum Alloy | 60 | 25 | 6.5 | 10 | / | / | / | / | / | / | / | / | / | / | |
| L15-400-D28-S | 76 | 386 | 141 | 30 | 400 | / | / | Aluminum Alloy | 60 | 25 | 6.5 | 10 | / | / | / | / | / | / | / | / | / | / | |
| L15-500-D28-W | 76 | 486 | 514 | 30 | 500 | / | / | Aluminum Alloy | 60 | 25 | 6.5 | 10 | / | / | / | / | / | / | / | / | / | / | |
| L15-500-D28-B | 76 | 486 | 514 | 30 | 500 | / | / | Aluminum Alloy | 60 | 25 | 6.5 | 10 | / | / | / | / | / | / | / | / | / | / | |
| L15-500-D28-S | 76 | 486 | 514 | 30 | 500 | / | / | Aluminum Alloy | 60 | 25 | 6.5 | 10 | / | / | / | / | / | / | / | / | / | / | |
| L15-600-D28-W | 76 | 586 | 614 | 30 | 600 | / | / | Aluminum Alloy | 60 | 25 | 6.5 | 10 | / | / | / | / | / | / | / | / | / | / | |
| L15-600-D28-B | 76 | 586 | 614 | 30 | 600 | / | / | Aluminum Alloy | 60 | 25 | 6.5 | 10 | / | / | / | / | / | / | / | / | / | / | |
| L15-600-D28-S | 76 | 586 | 614 | 30 | 600 | / | / | Aluminum Alloy | 60 | 25 | 6.5 | 10 | / | / | / | / | / | / | / | / | / | / |
characteristic

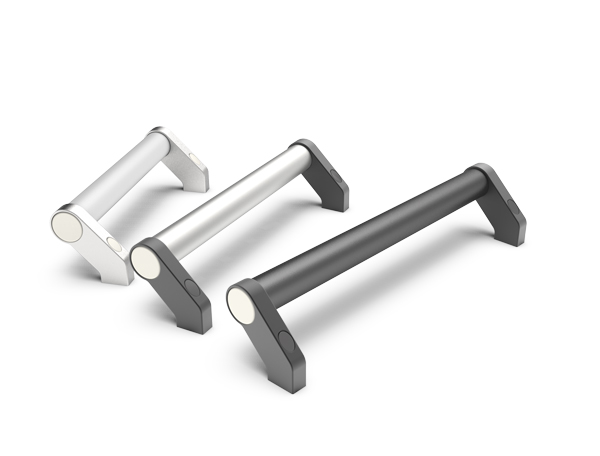

tubular handle
W type: tube body anodized, silver, matte finish; Foot silver , matte finish
Type B: black body, black foot, matte finish
Type S: tube body anodized, silver, matte finish; Black foot, matte finish
Tube end cover: polyamide (PA)
Installation:The foot has a through hole for the hexagon screw M6
Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging 4.Laser cutting Logo
