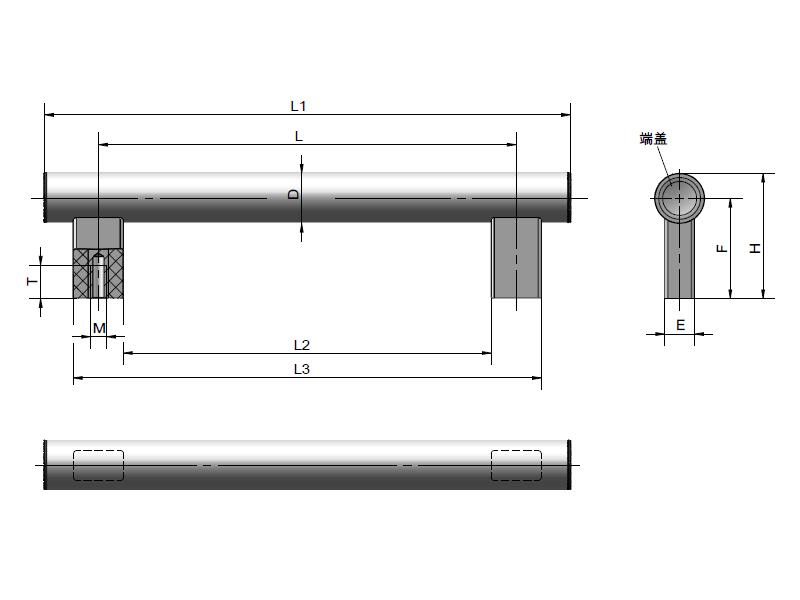

Product size diagram
Product size and properties
| Model Number | H  | L2 | L1 | Handle Diameter D | Length L | Weight（kg） | Color | Material | F | E | D1 | T | M | L3 | C | K | A | B | Tmin | R | D | W | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L17-200-D30-W | 75 | 170 | 265 | 30 | 200 | / | / | Aluminum Alloy | 60 | 18 | / | 15 | M8 | / | / | / | / | / | / | / | / | / | |
| L17-200-D30-B | 75 | 170 | 265 | 30 | 200 | 0.21 | / | Aluminum Alloy | 60 | 18 | / | 15 | M8 | / | / | / | / | / | / | / | / | / | |
| L17-200-D30-S | 75 | 170 | 265 | 30 | 200 | / | / | Aluminum Alloy | 60 | 18 | / | 15 | M8 | / | / | / | / | / | / | / | / | / | |
| L17-250-D30-W | 75 | 220 | 315 | 30 | 250 | / | / | Aluminum Alloy | 60 | 18 | / | 15 | M8 | / | / | / | / | / | / | / | / | / |
 |
| L17-250-D30-B | 75 | 220 | 315 | 30 | 250 | / | / | Aluminum Alloy | 60 | 18 | / | 15 | M8 | / | / | / | / | / | / | / | / | / | |
| L17-250-D30-S | 75 | 220 | 315 | 30 | 250 | / | / | Aluminum Alloy | 60 | 18 | / | 15 | M8 | / | / | / | / | / | / | / | / | / | |
| L17-300-D30-W | 75 | 270 | 365 | 30 | 300 | / | / | Aluminum Alloy | 60 | 18 | / | 15 | M8 | / | / | / | / | / | / | / | / | / | |
| L17-300-D30-B | 75 | 270 | 365 | 30 | 300 | / | / | Aluminum Alloy | 60 | 18 | / | 15 | M8 | / | / | / | / | / | / | / | / | / | |
| L17-300-D30-S | 75 | 270 | 365 | 30 | 300 | / | / | Aluminum Alloy | 60 | 18 | / | 15 | M8 | / | / | / | / | / | / | / | / | / | |
| L17-400-D30-W | 75 | 370 | 465 | 30 | 400 | / | / | Aluminum Alloy | 60 | 18 | / | 15 | M8 | / | / | / | / | / | / | / | / | / |
|
| L17-400-D30-B | 75 | 370 | 465 | 30 | 400 | / | / | Aluminum Alloy | 60 | 18 | / | 15 | M8 | / | / | / | / | / | / | / | / | / |
|
| L17-400-D30-S | 75 | 370 | 465 | 30 | 400 | / | / | Aluminum Alloy | 60 | 18 | / | 15 | M8 | / | / | / | / | / | / | / | / | / |
|
| L17-500-D30-W | 75 | 470 | 565 | 30 | 500 | / | / | Aluminum Alloy | 60 | 18 | / | 15 | M8 | / | / | / | / | / | / | / | / | / | |
| L17-500-D30-B | 75 | 470 | 565 | 30 | 500 | / | / | Aluminum Alloy | 60 | 18 | / | 15 | M8 | / | / | / | / | / | / | / | / | / | |
| L17-500-D30-S | 75 | 470 | 565 | 30 | 500 | / | / | Aluminum Alloy | 60 | 18 | / | 15 | M8 | / | / | / | / | / | / | / | / | / | |
| L17-600-D30-W | 75 | 570 | 665 | 30 | 600 | 0.35 | / | Aluminum Alloy | 60 | 18 | / | 15 | M8 | / | / | / | / | / | / | / | / | / |
|
| L17-600-D30-B | 75 | 570 | 665 | 30 | 600 | 0.35 | / | Aluminum Alloy | 60 | 18 | / | 15 | M8 | / | / | / | / | / | / | / | / | / | |
| L17-600-D30-S | 75 | 570 | 665 | 30 | 600 | 0.35 | / | Aluminum Alloy | 60 | 18 | / | 15 | M8 | / | / | / | / | / | / | / | / | / |
characteristic

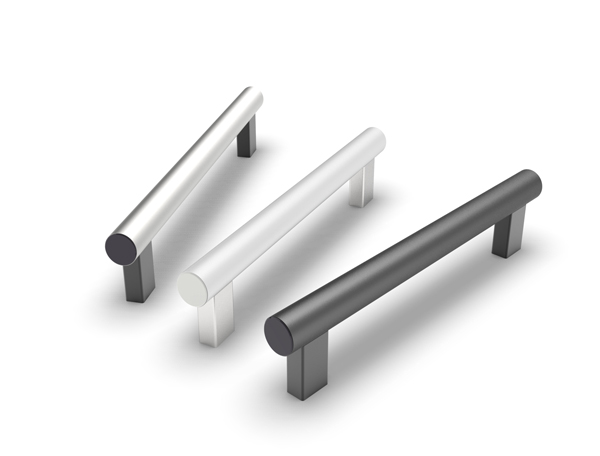

tubular handle
W type: tube body anodized, silver, matte finish; Foot silver , matte finish
Type B: black body, black foot, matte finish
Type S: tube body anodized, silver, matte finish; Black foot, matte finish
Tube end cover: polyamide (PA)
Installation: pin with threaded blind hole
Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging 4.Laser cutting Logo
