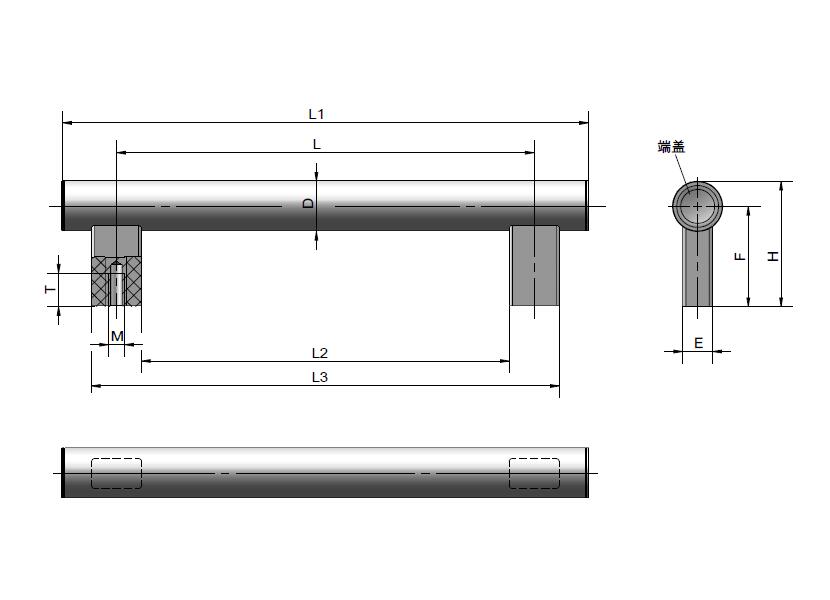

Product size diagram
Product size and properties
| Model Number | H  | L2 | L1 | Handle Diameter D | Length L | Weight（kg） | Color | Material | F | E | D1 | T | M | L3 | C | K | A | B | Tmin | R | D | W | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L18-200-D30 | 75 | 170 | 256 | 30 | 200 | 0.295 | / | SUS304 | 60 | 18 | / | 15 | M8 | / | / | / | / | / | / | / | / | / | |
| L18-250-D30 | 75 | 220 | 315 | 30 | 250 | / | / | SUS304 | 60 | 18 | / | 15 | M8 | / | / | / | / | / | / | / | / | / |
 |
| L18-300-D30 | 75 | 270 | 365 | 30 | 300 | / | / | SUS304 | 60 | 18 | / | 15 | M8 | / | / | / | / | / | / | / | / | / | |
| L18-400-D30 | 75 | 370 | 465 | 30 | 400 | / | / | SUS304 | 60 | 18 | / | 15 | M8 | / | / | / | / | / | / | / | / | / | |
| L18-500-D30 | 75 | 470 | 565 | 30 | 500 | / | / | SUS304 | 60 | 18 | / | 15 | M8 | / | / | / | / | / | / | / | / | / | |
| L18-600-D30 | 75 | 570 | 665 | 30 | 600 | / | / | SUS304 | 60 | 18 | / | 15 | M8 | / | / | / | / | / | / | / | / | / |
characteristic

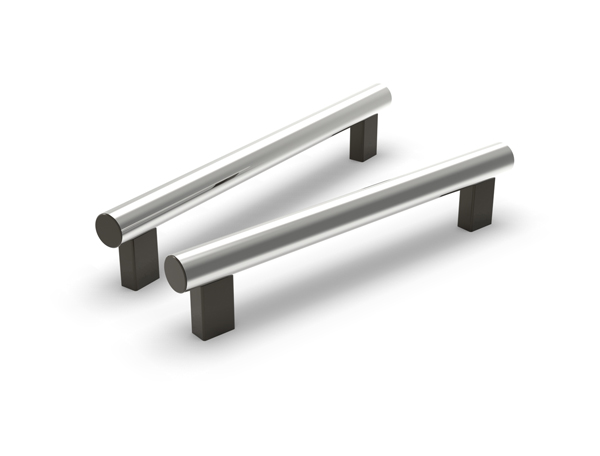

tubular handle
Tube body:SUS304 material,polished by sand blasting and electrolysis finish
Foot: black, matte finish
End cover: polyamide (PA)
Installation: pin with threaded blind hole
