| Model Number | H  | L2 | L1 | Handle Diameter D | Length L | Weight（kg） | Color | Material | F | E | D1 | T | M | L3 | C | K | A | B | Tmin | R | D | W | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L19-300-D30-K | 60 | / | 365 | 30 | 300 | / | / | SUS304 | / | / | 20 | 15 | 8 | / | / | / | / | / | / | / | / | / | |
| L19-400-D30-K | 60 | / | 465 | 30 | 400 | / | / | SUS304 | / | / | 20 | 15 | 8 | / | / | / | / | / | / | / | / | / | |
| L19-500-D30-K | 60 | / | 565 | 30 | 500 | / | / | SUS304 | / | / | 20 | 15 | 8 | / | / | / | / | / | / | / | / | / | |
| L19-600-D30-K | 60 | / | 665 | 30 | 600 | / | / | SUS304 | / | / | 20 | 15 | 8 | / | / | / | / | / | / | / | / | / |

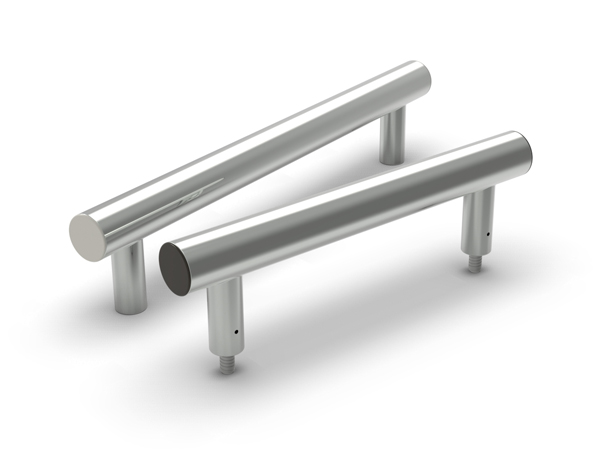

Tubular handle：
Pipe and Foot: SUS304 ,Sanded, polished finish
Installation screw: SUS304 stainless steel with threaded rod M8
End cover: K type: polyamide (PA)
E type:SUS304 stainless steel
Installation: mounting screw with M8 on foot
Application: can be used with L20 in relative position
The length of T can be provided according to customer requirements
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging 4.Laser cutting Logo
