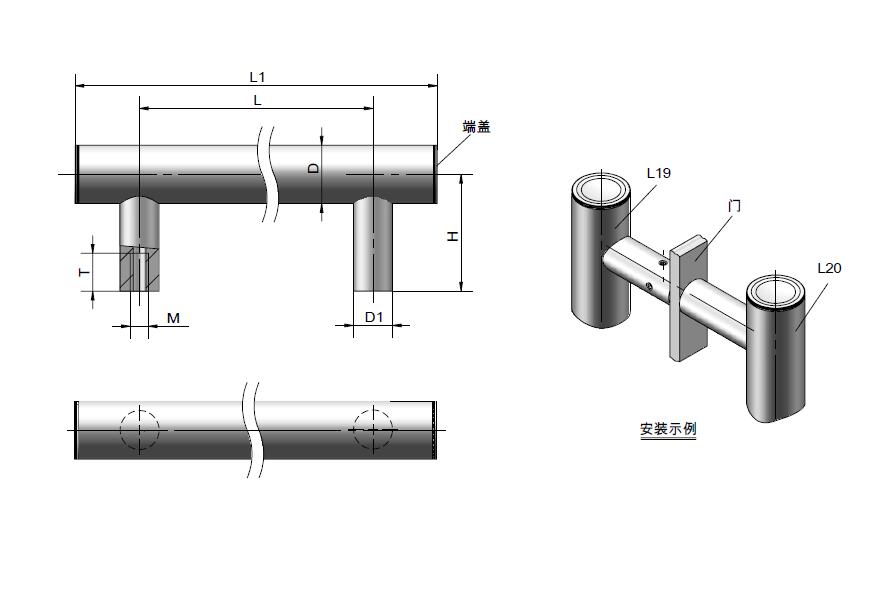

Product size diagram
Product size and properties
| Model Number | H  | L2 | L1 | Handle Diameter D | Length L | Weight（kg） | Color | Material | F | E | D1 | T | M | L3 | C | K | A | B | Tmin | R | D | W | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L20-200-D32-M6-K | 60 | / | 265 | 32 | 200 | / | / | SUS304 | / | / | 20 | 16 | M6 | / | / | / | / | / | / | / | / | / | |
| L20-200-D32-M6-E | 60 | / | 265 | 32 | 200 | / | / | SUS304 | / | / | 20 | 16 | M6 | / | / | / | / | / | / | / | / | / | |
| L20-250-D32-M6-K | 60 | / | 315 | 32 | 250 | / | / | SUS304 | / | / | 20 | 16 | M6 | / | / | / | / | / | / | / | / | / |
 |
| L20-250-D32-M6-E | 60 | / | 315 | 32 | 250 | / | / | SUS304 | / | / | 20 | 16 | M6 | / | / | / | / | / | / | / | / | / |
|
| L20-300-D32-M6-K | 60 | / | 365 | 32 | 300 | / | / | SUS304 | / | / | 20 | 16 | M6 | / | / | / | / | / | / | / | / | / | |
| L20-300-D32-M6-E | 60 | / | 365 | 32 | 300 | / | / | SUS304 | / | / | 20 | 16 | M6 | / | / | / | / | / | / | / | / | / | |
| L20-400-D32-M6-K | 60 | / | 465 | 32 | 400 | / | / | SUS304 | / | / | 20 | 16 | M6 | / | / | / | / | / | / | / | / | / | |
| L20-400-D32-M6-E | 60 | / | 465 | 32 | 400 | / | / | SUS304 | / | / | 20 | 16 | M6 | / | / | / | / | / | / | / | / | / | |
| L20-500-D32-M6-K | 60 | / | 565 | 32 | 500 | / | / | SUS304 | / | / | 20 | 16 | M6 | / | / | / | / | / | / | / | / | / | |
| L20-500-D32-M6-E | 60 | / | 565 | 32 | 500 | / | / | SUS304 | / | / | 20 | 16 | M6 | / | / | / | / | / | / | / | / | / | |
| L20-600-D32-M6-K | 60 | / | 665 | 32 | 600 | / | / | SUS304 | / | / | 20 | 16 | M6 | / | / | / | / | / | / | / | / | / | |
| L20-600-D32-M6-E | 60 | / | 665 | 32 | 600 | / | / | SUS304 | / | / | 20 | 16 | M6 | / | / | / | / | / | / | / | / | / | |
| L20-200-D32-M8-K | 60 | / | 265 | 32 | 200 | / | / | SUS304 | / | / | 20 | 16 | M8 | / | / | / | / | / | / | / | / | / | |
| L20-200-D32-M8-E | 60 | / | 265 | 32 | 200 | / | / | SUS304 | / | / | 20 | 16 | M8 | / | / | / | / | / | / | / | / | / | |
| L20-250-D32-M8-K | 60 | / | 315 | 32 | 250 | / | / | SUS304 | / | / | 20 | 16 | M8 | / | / | / | / | / | / | / | / | / | |
| L20-250-D32-M8-E | 60 | / | 315 | 32 | 250 | / | / | SUS304 | / | / | 20 | 16 | M8 | / | / | / | / | / | / | / | / | / | |
| L20-300-D32-M8-K | 60 | / | 365 | 32 | 300 | / | / | SUS304 | / | / | 20 | 16 | M8 | / | / | / | / | / | / | / | / | / | |
| L20-300-D32-M8-E | 60 | / | 365 | 32 | 300 | / | / | SUS304 | / | / | 20 | 16 | M8 | / | / | / | / | / | / | / | / | / | |
| L20-400-D32-M8-K | 60 | / | 465 | 32 | 400 | / | / | SUS304 | / | / | 20 | 16 | M8 | / | / | / | / | / | / | / | / | / | |
| L20-400-D32-M8-E | 60 | / | 465 | 32 | 400 | / | / | SUS304 | / | / | 20 | 16 | M8 | / | / | / | / | / | / | / | / | / | |
| L20-500-D32-M8-K | 60 | / | 565 | 32 | 500 | / | / | SUS304 | / | / | 20 | 16 | M8 | / | / | / | / | / | / | / | / | / | |
| L20-500-D32-M8-E | 60 | / | 565 | 32 | 500 | / | / | SUS304 | / | / | 20 | 16 | M8 | / | / | / | / | / | / | / | / | / | |
| L20-600-D32-M8-K | 60 | / | 665 | 32 | 600 | / | / | SUS304 | / | / | 20 | 16 | M8 | / | / | / | / | / | / | / | / | / | |
| L20-600-D32-M8-E | 60 | / | 665 | 32 | 600 | / | / | SUS304 | / | / | 20 | 16 | M8 | / | / | / | / | / | / | / | / | / |
characteristic

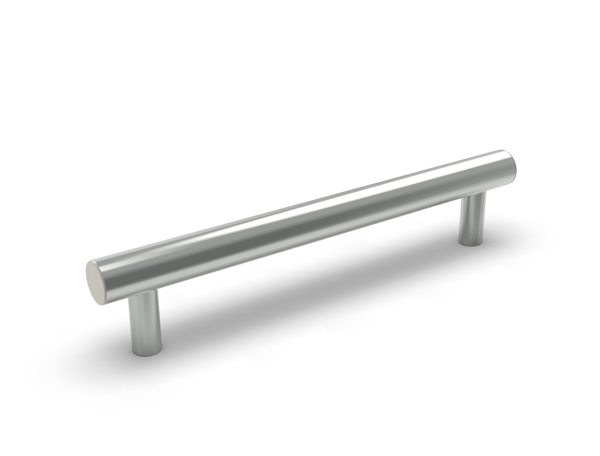

Tubular handle
Tube body and legs: SUS304 stainless steel, sanded, polished finish
End cover: K type: polyamide (PA)
Installation: pin with threaded hole
can be used with L19 in relative position
Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging 4.Laser cutting Logo
