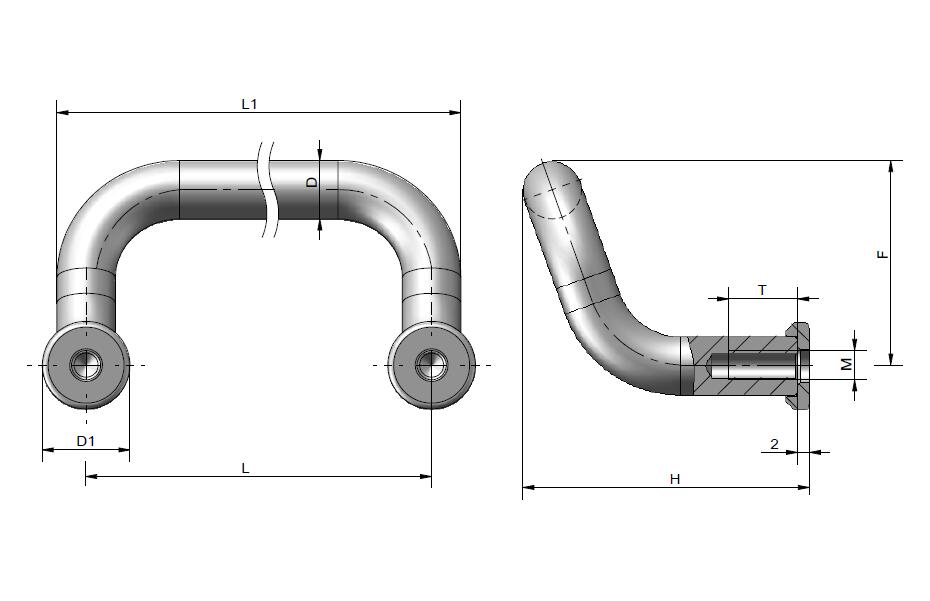

Product size diagram
Product size and properties
| Model Number | H  | L2 | L1 | Handle Diameter D | Length L | Weight（kg） | Color | Material | F | E | D1 | T | M | L3 | C | K | A | B | Tmin | R | D | W | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L23-88-D10-W | 47 | / | 98 | 10 | 88 | / | / | SUS304 | 35 | / | / | 13 | M5 | / | / | / | / | / | / | / | / | / | |
| L23-88-D10-B | 47 | / | 98 | 10 | 88 | / | / | SPCC | 35 | / | / | 13 | M5 | / | / | / | / | / | / | / | / | / | |
| L23-100-D10-W | 47 | / | 110 | 10 | 100 | / | / | SUS304 | 35 | / | / | 13 | M5 | / | / | / | / | / | / | / | / | / |
 |
| L23-100-D10-B | 47 | / | 110 | 10 | 100 | / | / | SPCC | 35 | / | / | 13 | M5 | / | / | / | / | / | / | / | / | / |
|
| L23-120-D10-W | 47 | / | 130 | 10 | 120 | / | / | SUS304 | 35 | / | / | 13 | M5 | / | / | / | / | / | / | / | / | / | |
| L23-120-D10-B | 47 | / | 130 | 10 | 120 | / | / | SPCC | 35 | / | / | 13 | M5 | / | / | / | / | / | / | / | / | / |
characteristic

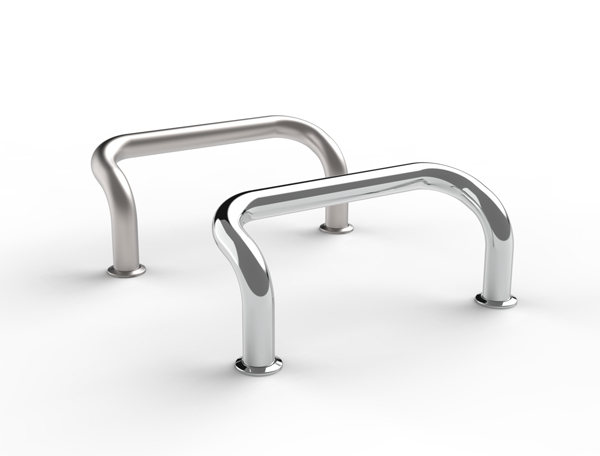

Bending handle:
Type W: tube SUS304 stainless steel, mirror finish, bright finish. Washer, SUS304 stainless steel
Type B: tube body made of chrome-plated steel with a bright finish. Washer, galvanized steel
Beautiful and practical
Type W ：SUS 304 material,corrosion resistance
Installation: threaded blind hole
Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging 4.Laser cutting Logo
Product Name
Handle
Handle
More information
If you have more technical advice，Please call0535-6217008-801
