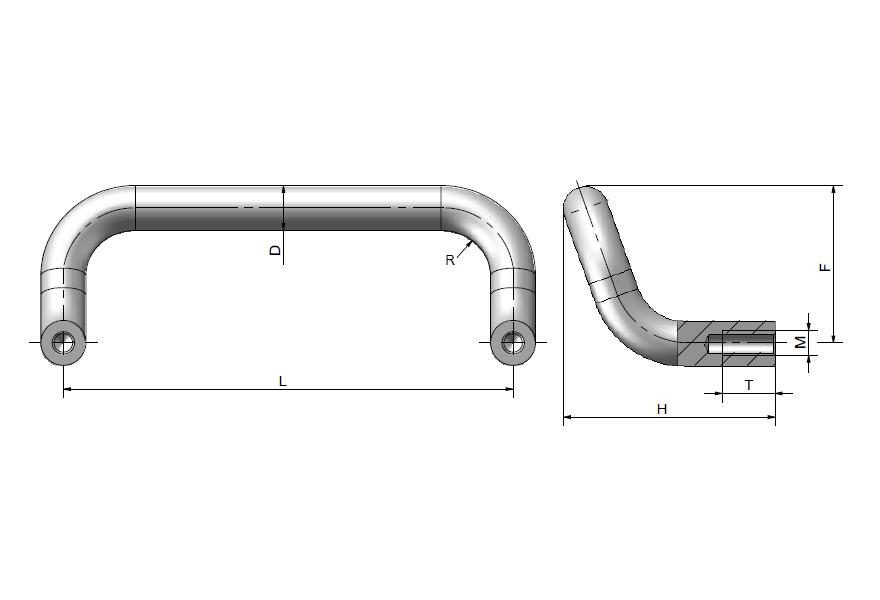

Product size diagram
Product size and properties
| Model Number | H  | L2 | L1 | Handle Diameter D | Length L | Weight（kg） | Color | Material | F | E | D1 | T | M | L3 | C | K | A | B | Tmin | R | D | W | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L27-200-D20-W | 68 | / | / | 20 | 200 | / | / | Aluminum Alloy | 105 | / | / | 15 | M8 | / | / | / | / | / | / | / | / | / |
 |
| L27-200-D20-B | 68 | / | / | 20 | 200 | / | / | Aluminum Alloy | 105 | / | / | 15 | M8 | / | / | / | / | / | / | / | / | / |
|
| L27-300-D20-W | 68 | / | / | 20 | 300 | / | / | Aluminum Alloy | 105 | / | / | 15 | M8 | / | / | / | / | / | / | / | / | / | |
| L27-300-D20-B | 68 | / | / | 20 | 300 | / | / | Aluminum Alloy | 105 | / | / | 15 | M8 | / | / | / | / | / | / | / | / | / |
characteristic

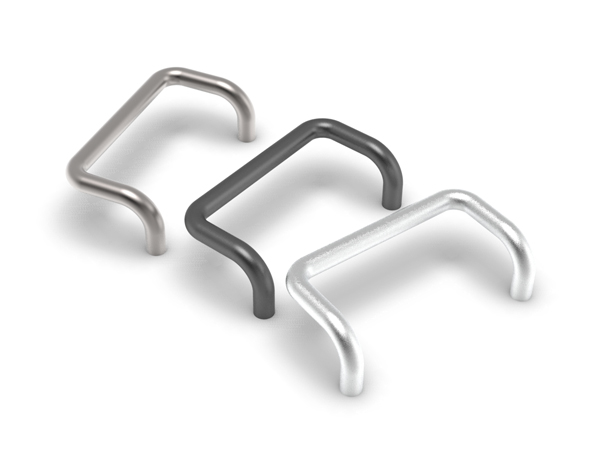

Bent handle:
W type:tube body anodized, silver, matte finish
B type:black body,matte finish
Handle is extruded and shaped by aluminum
Installation:with threaded blind hole
Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging 4.Laser cutting Logo
Product Name
Handle
Handle
More information
If you have more technical advice，Please call0535-6217008-801
