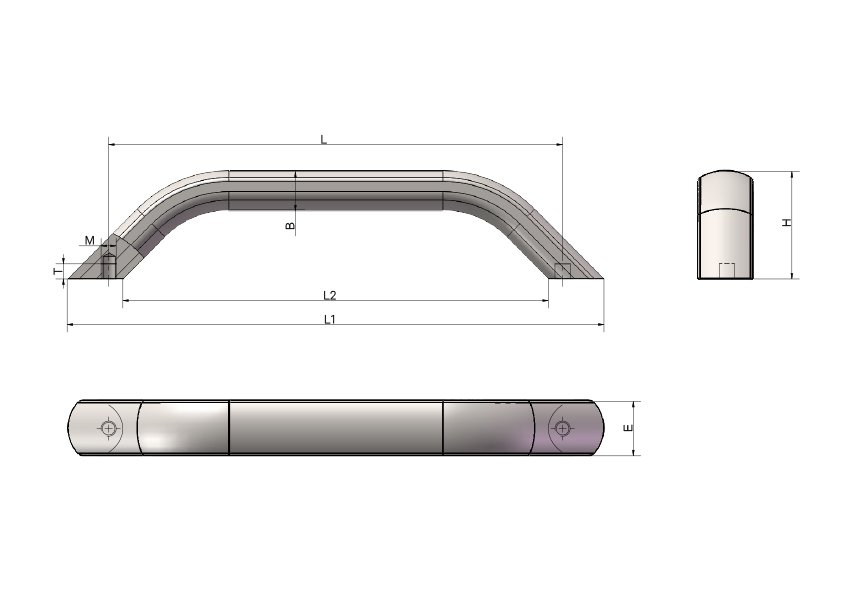

Product size diagram
Product size and properties
| Model Number | H  | L2 | L1 | Handle Diameter D | Length L | Weight（kg） | Color | Material | F | E | D1 | T | M | L3 | C | K | A | B | Tmin | R | D | W | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L24-250-28-W | 63 | / | 290 | / | 250 | / | / | Aluminum Alloy | / | 28 | / | 10 | M8 | / | / | / | / | 18 | / | / | / | / |
 |
| L24-250-28-B | 63 | / | 290 | / | 250 | / | / | Aluminum Alloy | / | 28 | / | 10 | M8 | / | / | / | / | 18 | / | / | / | / |
|
| L24-300-28-W | 63 | / | 340 | / | 300 | / | / | Aluminum Alloy | / | 28 | / | 10 | M8 | / | / | / | / | 18 | / | / | / | / | |
| L24-300-28-B | 63 | / | 340 | / | 300 | / | / | Aluminum Alloy | / | 28 | / | 10 | M8 | / | / | / | / | 18 | / | / | / | / | |
| L24-400-28-W | 63 | / | 440 | / | 400 | / | / | Aluminum Alloy | / | 28 | / | 10 | M8 | / | / | / | / | 18 | / | / | / | / | |
| L24-400-28-B | 63 | / | 440 | / | 400 | / | / | Aluminum Alloy | / | 28 | / | 10 | M8 | / | / | / | / | 18 | / | / | / | / | |
| L24-300-36-W | 71 | / | 355 | / | 300 | / | / | Aluminum Alloy | / | 36 | / | 14 | M8 | / | / | / | / | 26 | / | / | / | / |
|
| L24-300-36-B | 71 | / | 355 | / | 300 | / | / | Aluminum Alloy | / | 36 | / | 14 | M8 | / | / | / | / | 26 | / | / | / | / | |
| L24-400-36-W | 71 | / | 455 | / | 400 | / | / | Aluminum Alloy | / | 36 | / | 14 | M8 | / | / | / | / | 26 | / | / | / | / | |
| L24-400-36-B | 71 | / | 455 | / | 400 | / | / | Aluminum Alloy | / | 36 | / | 14 | M8 | / | / | / | / | 26 | / | / | / | / | |
| L24-500-36-W | 71 | / | 555 | / | 500 | 1.13 | / | Aluminum Alloy | / | 36 | / | 14 | M8 | / | / | / | / | 26 | / | / | / | / |
|
| L24-500-36-B | 71 | / | 555 | / | 500 | 1.13 | / | Aluminum Alloy | / | 36 | / | 14 | M8 | / | / | / | / | 26 | / | / | / | / |
|
| L24-600-36-W | 71 | / | 655 | / | 600 | / | / | Aluminum Alloy | / | 36 | / | 14 | M8 | / | / | / | / | 26 | / | / | / | / |
|
| L24-600-36-B | 71 | / | 655 | / | 600 | / | / | Aluminum Alloy | / | 36 | / | 14 | M8 | / | / | / | / | 26 | / | / | / | / |
|
| L24-800-36-W | 71 | / | 855 | / | 800 | / | / | Aluminum Alloy | / | 36 | / | 14 | M8 | / | / | / | / | 26 | / | / | / | / | |
| L24-800-36-B | 71 | / | 855 | / | 800 | / | / | Aluminum Alloy | / | 36 | / | 14 | M8 | / | / | / | / | 26 | / | / | / | / | |
| L24-1000-36-W | 71 | / | 1055 | / | 1000 | 2.15 | / | Aluminum Alloy | / | 36 | / | 14 | M8 | / | / | / | / | 26 | / | / | / | / |
|
| L24-1000-36-B | 71 | / | 1055 | / | 1000 | 2.15 | / | Aluminum Alloy | / | 36 | / | 14 | M8 | / | / | / | / | 26 | / | / | / | / |
|
characteristic
Bent handle:

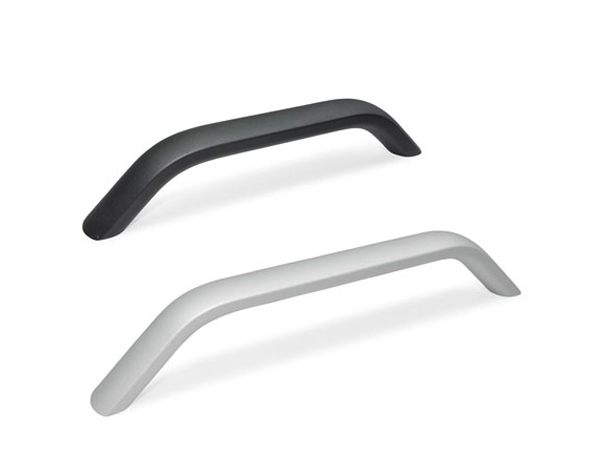

W type: tube body anodized, silver, matte finish;
B type：black body,matte finish
Installation: with threaded blind hole
Unique oval handle shape, fashionable and beautiful, comfortable grip, firm and stable
Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging 4.Laser cutting Logo
Product Name
Handle
Handle
More information
If you have more technical advice，Please call0535-6217008-801
