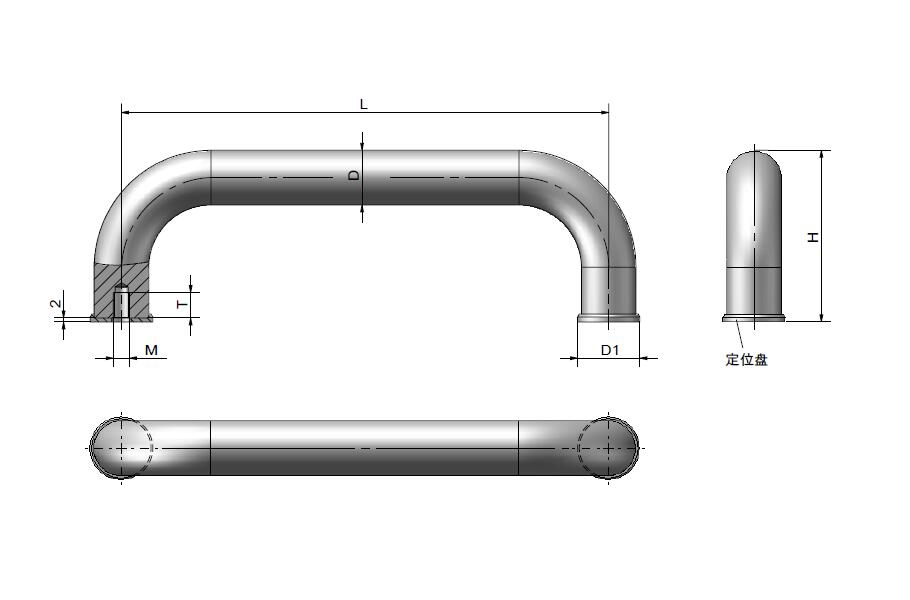

Product size diagram
Product size and properties
| Model Number | H  | L2 | L1 | Handle Diameter D | Length L | Weight（kg） | Color | Material | F | E | D1 | T | M | L3 | C | K | A | B | Tmin | R | D | W | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L29-64-8-W | 36 | / | / | 8 | 64 | / | / | Aluminum Alloy | / | / | 12 | / | M4 | / | / | / | / | / | 9 | / | / | / | |
| L29-64-8-B | 36 | / | / | 8 | 64 | / | / | SUS304 | / | / | 12 | / | M4 | / | / | / | / | / | 9 | / | / | / | |
| L29-88-8-W | 36 | / | / | 8 | 64 | / | / | Aluminum Alloy | / | / | 12 | / | M4 | / | / | / | / | / | 9 | / | / | / | |
| L29-88-8-B | 36 | / | / | 8 | 64 | / | / | SUS304 | / | / | 12 | / | M4 | / | / | / | / | / | 9 | / | / | / | |
| L29-96-8-W | 36 | / | / | 8 | 64 | / | / | Aluminum Alloy | / | / | 12 | / | M4 | / | / | / | / | / | 9 | / | / | / | |
| L29-96-8-B | 36 | / | / | 8 | 64 | / | / | SUS304 | / | / | 12 | / | M4 | / | / | / | / | / | 9 | / | / | / | |
| L29-100-8-W | 36 | / | / | 8 | 64 | / | / | Aluminum Alloy | / | / | 12 | / | M4 | / | / | / | / | / | 9 | / | / | / | |
| L29-100-8-B | 36 | / | / | 8 | 64 | / | / | SUS304 | / | / | 12 | / | M4 | / | / | / | / | / | 9 | / | / | / | |
| L29-120-8-W | 36 | / | / | 8 | 64 | / | / | Aluminum Alloy | / | / | 12 | / | M4 | / | / | / | / | / | 9 | / | / | / | |
| L29-120-8-B | 36 | / | / | 8 | 64 | / | / | SUS304 | / | / | 12 | / | M4 | / | / | / | / | / | 9 | / | / | / | |
| L29-128-8-W | 36 | / | / | 8 | 64 | / | / | Aluminum Alloy | / | / | 12 | / | M4 | / | / | / | / | / | 9 | / | / | / | |
| L29-128-8-B | 36 | / | / | 8 | 64 | / | / | SUS304 | / | / | 12 | / | M4 | / | / | / | / | / | 9 | / | / | / | |
| L29-88-10-W | 44 | / | / | 10 | 64 | / | / | Aluminum Alloy | / | / | 15 | / | M5 | / | / | / | / | / | 12 | / | / | / | |
| L29-88-10-B | 44 | / | / | 10 | 88 | / | / | SUS304 | / | / | 15 | / | M5 | / | / | / | / | / | 12 | / | / | / | |
| L29-100-10-W | 44 | / | / | 10 | 88 | / | / | Aluminum Alloy | / | / | 15 | / | M5 | / | / | / | / | / | 12 | / | / | / |
 |
| L29-100-10-B | 44 | / | / | 10 | 88 | / | / | SUS304 | / | / | 15 | / | M5 | / | / | / | / | / | 12 | / | / | / |
|
| L29-120-10-W | 44 | / | / | 10 | 88 | / | / | Aluminum Alloy | / | / | 15 | / | M5 | / | / | / | / | / | 12 | / | / | / | |
| L29-120-10-B | 44 | / | / | 10 | 88 | / | / | SUS304 | / | / | 15 | / | M5 | / | / | / | / | / | 12 | / | / | / | |
| L29-180-10-W | 44 | / | / | 10 | 88 | / | / | Aluminum Alloy | / | / | 15 | / | M5 | / | / | / | / | / | 12 | / | / | / | |
| L29-180-10-B | 44 | / | / | 10 | 88 | / | / | SUS304 | / | / | 15 | / | M5 | / | / | / | / | / | 12 | / | / | / | |
| L29-200-10-W | 44 | / | / | 10 | 88 | / | / | Aluminum Alloy | / | / | 15 | / | M5 | / | / | / | / | / | 12 | / | / | / | |
| L29-200-10-B | 44 | / | / | 10 | 88 | / | / | SUS304 | / | / | 15 | / | M5 | / | / | / | / | / | 12 | / | / | / |
characteristic
Tubular handle
W type: aluminum, anodized, aluminum color
B type: stainless steel SUS304, polish finish
Positioning disc: stainless steel material, available on demand
Installation: withthreaded blind hole
Handle making generous, beautiful and practical
The positioning disc can be accurately matched to the mounting hole of the cabinet
Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging 4.Laser cutting Logo
