Product size diagram
Product size and properties
| Model Number | H  | L2 | L1 | Handle Diameter D | Length L | Weight（kg） | Color | Material | F | E | D1 | T | M | L3 | C | K | A | B | Tmin | R | D | W | 3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L30-250-28-A | 90 | / | / | 28 | 250 | / | / | SUS304 | / | / | 32 | 17 | M10 | / | / | / | / | / | / | / | / | / |
 |
| L30-300-28-A | 90 | / | / | 28 | 300 | / | / | SUS304 | / | / | 32 | 17 | M10 | / | / | / | / | / | / | / | / | / | |
| L30-350-28-A | 90 | / | / | 28 | 350 | / | / | SUS304 | / | / | 32 | 17 | M10 | / | / | / | / | / | / | / | / | / | |
| L30-400-28-A | 90 | / | / | 28 | 400 | / | / | SUS304 | / | / | 32 | 17 | M10 | / | / | / | / | / | / | / | / | / | |
| L30-250-28-B | 90 | / | / | 28 | 250 | / | / | SUS304 | / | / | 32 | 20 | M10 | / | / | / | / | / | / | / | / | / |
|
| L30-300-28-B | 90 | / | / | 28 | 300 | / | / | SUS304 | / | / | 32 | 20 | M10 | / | / | / | / | / | / | / | / | / | |
| L30-350-28-B | 90 | / | / | 28 | 350 | / | / | SUS304 | / | / | 32 | 20 | M10 | / | / | / | / | / | / | / | / | / | |
| L30-400-28-B | 90 | / | / | 28 | 400 | / | / | SUS304 | / | / | 32 | 20 | M10 | / | / | / | / | / | / | / | / | / |
characteristic

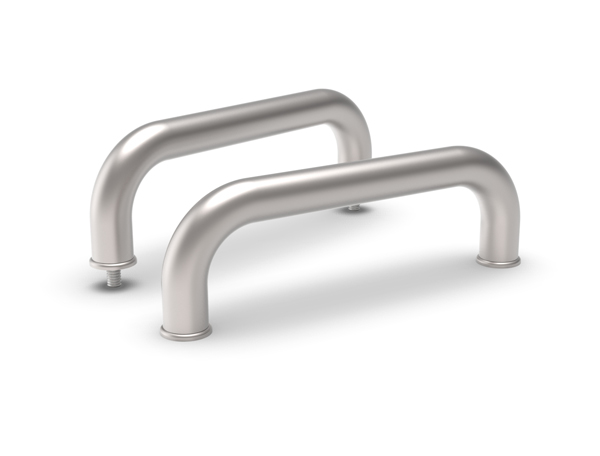

Pipe handle:
1. SUS304 material ,Polished finish, Light facing
Thread / Screw rod：Stainless Steel material
Installation：With screw hole

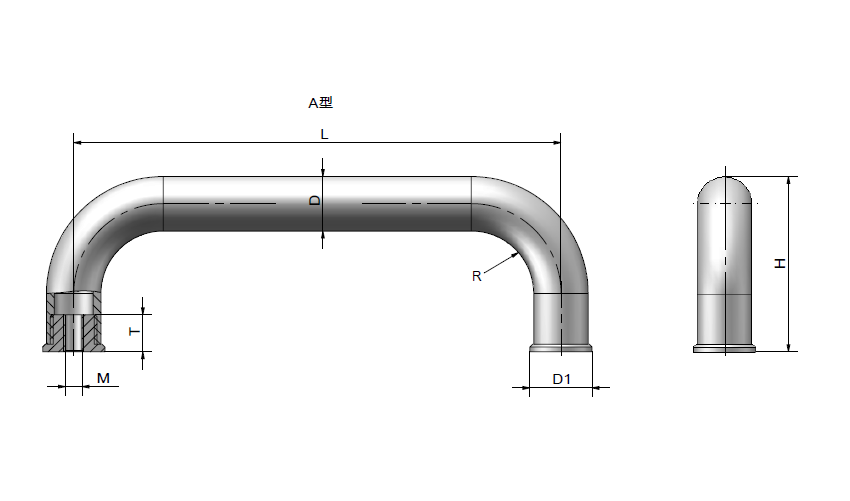

Light facingType A with threaded blind hole

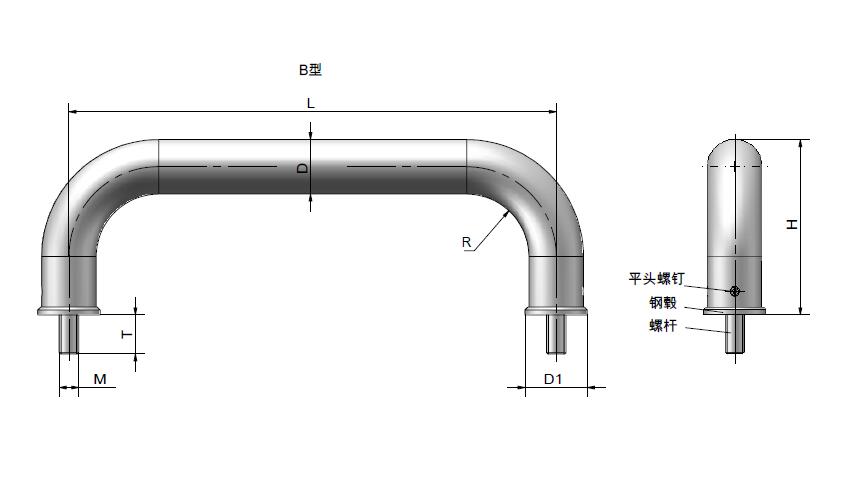

Type B with mounting screw
Generous, beautiful and practical, SUS material anti-corrosion,can be used in a relative position
Available services
1.length can be customized
2.optional screws
3.Ultrasonic cleaning and dust-free packaging
4.laser cutting LOGO
Product Name
Handle
Handle
