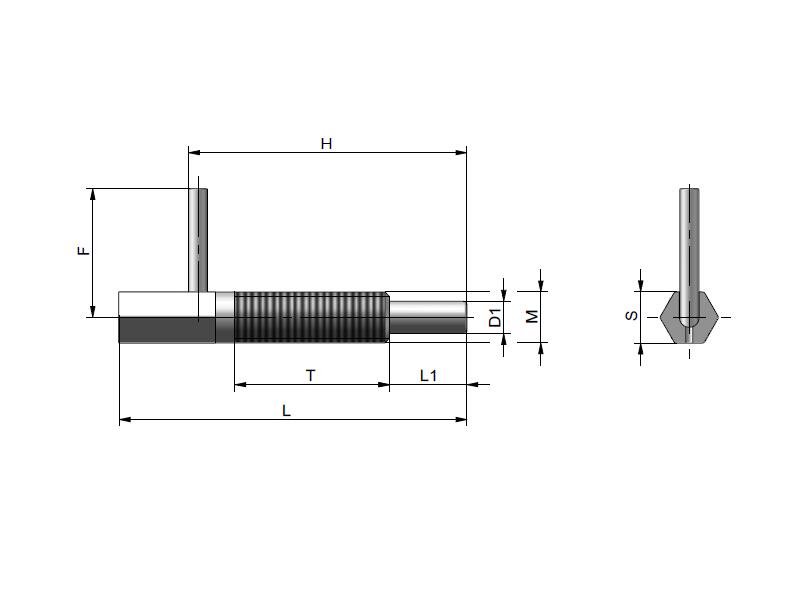

Product size diagram
Product size and properties
| Model Number | Material  | D1 | Length L | Handle Diameter D | L1 | L2 | F | T | M | K | D2 | S | Height | S1 | S2 | T1 | M1 | C | A | D3 | B | Maximum load (N) | Weight (g) |
3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S06-4-S | Carbon Steel | 4 | 41.5 | / | 9.5 | / | 16 | 20 | M6 | / | / | 6 | / | / | / | / | / | / | / | / | / | 11 | 7 |
 |
| S06B-4 | SUS304 | 4 | 41.5 | / | 9.5 | / | 16 | 20 | M6 | / | / | 6 | / | / | / | / | / | / | / | / | / | 11 | 7 |
|
| S06-5-S | Carbon Steel | 5 | 54 | / | 12 | / | 19.5 | 27 | M8 | / | / | 8 | / | / | / | / | / | / | / | / | / | 15 | 20 | |
| S06-6-S | Carbon Steel | 6 | 65 | / | 14 | / | 24 | 33.5 | M10 | / | / | 10 | / | / | / | / | / | / | / | / | / | 18 | 32 | |
| S06B-6 | SUS304 | 6 | 65 | / | 14 | / | 24 | 33.5 | M10 | / | / | 10 | / | / | / | / | / | / | / | / | / | 18 | 32 | |
| S06-8-S | Carbon Steel | 8 | 73 | / | 19 | / | 32 | 31.8 | M12 | / | / | 12 | / | / | / | / | / | / | / | / | / | 33 | 45 | |
| S06B-8 | SUS304 | 8 | 73 | / | 19 | / | 32 | 31.8 | M12 | / | / | 12 | / | / | / | / | / | / | / | / | / | 33 | 45 | |
| S06-10-S | Carbon Steel | 10 | 102.5 | / | 25 | / | 33.5 | 50.5 | M16 | / | / | 16 | / | / | / | / | / | / | / | / | / | 26 | 112 | |
| S06B-10 | SUS304 | 10 | 102.5 | / | 25 | / | 33.5 | 50.5 | M16 | / | / | 16 | / | / | / | / | / | / | / | / | / | 26 | 112 |
characteristic
With stop and the locking nuts
Available services
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging
Product Name
Push Pull Index Plunger
Push Pull Index Plunger
More information
